• Learning to Install Adobe Acrobat Reader DC

    Back in April 2009, I wrote an article on installing Adobe Acrobat Reader. A reader reported to me that the process does not work for Adobe Acrobat Reader DC. There were enough changes to the process, I worked through and documented the process so the reader could get Acrobat Reader DC installed.

    Portable Document Format (PDF) files are a popular way to transfer documents between computer users. A PDF file presents documents, including formatting and images, independent of software, hardware, and operating systems. There are over 10,000 free viewers available on http://www.download.com which allow the viewing of PDF files.

    In this article, you will learn:

    • how to sign up to distribute the free Adobe Acrobat Reader DC version
    • download the distributable file
    • download the Adobe Customization Wizard
    • extract the Acrobat Reader MSI file
    • customize the MSI file
    • install the customized file on your master image
    • remove additional menu items using JavaScript

    Note: This article has been updated three times with feedback from the community. Scroll down to the bottom to see the updates.

    While it may be less time consuming to download the free Acrobat Reader and use that MSI file, Adobe requires any entity that will install the program for multiple users to agree to the Adobe Reader Distribution Agreement.

    Many things have changed in the world of virtualization since April 2009. The process outlined in this article can be used for Citrix Virtual Apps and Desktops, Microsoft Remote Desktop Services, Parallels Remote Access Server, and VMware Horizon.

    For this article, I used a master Microsoft Windows Server 2016 image usable by all four technologies list above.

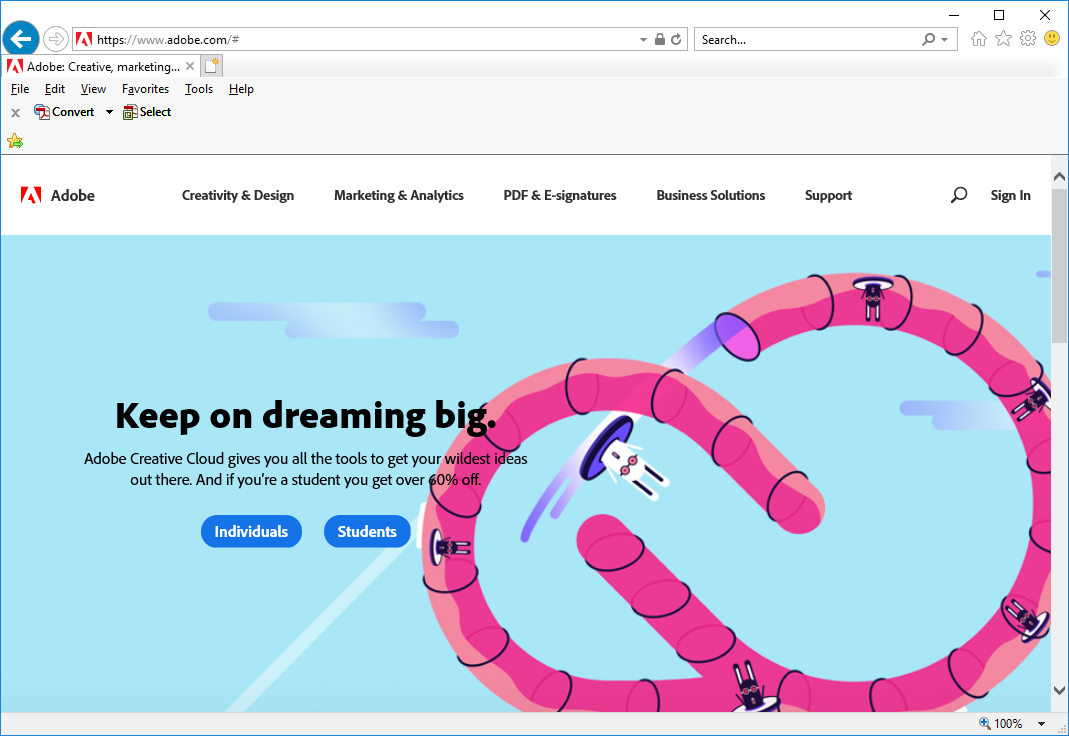

    To get started, open your browser and go to http://www.adobe.com (Figure 1).

    Figure 1
    Figure 1

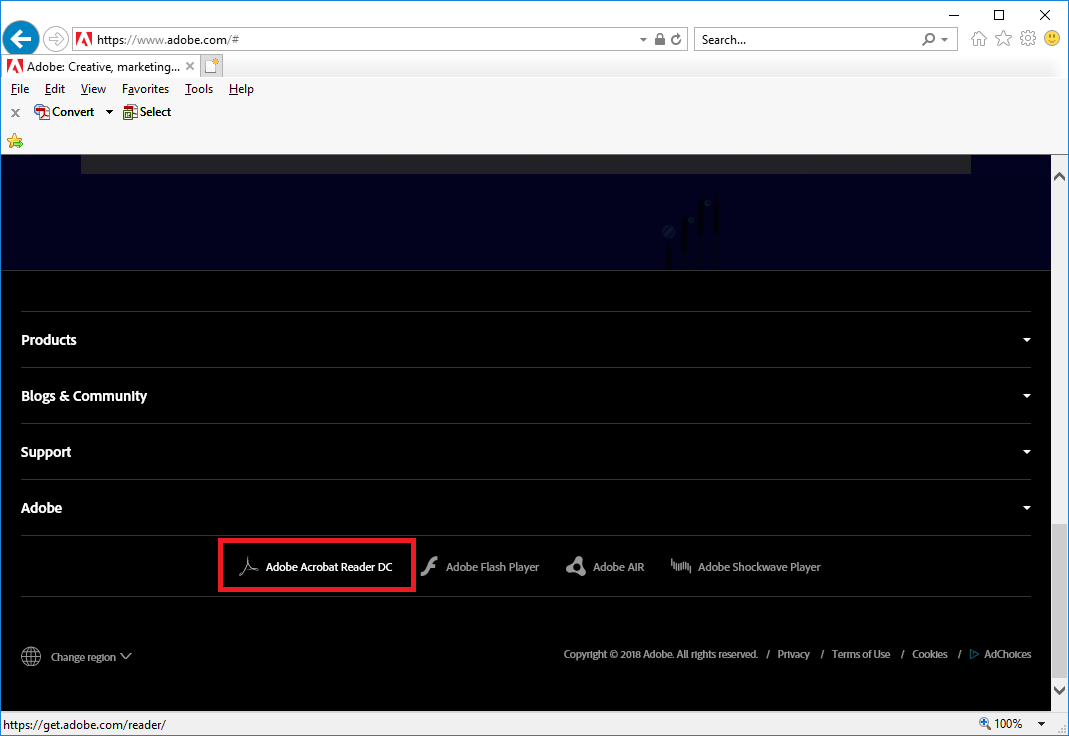

    Scroll down and click on the Adobe Acrobat Reader DC link (Figure 2).

    Figure 2
    Figure 2

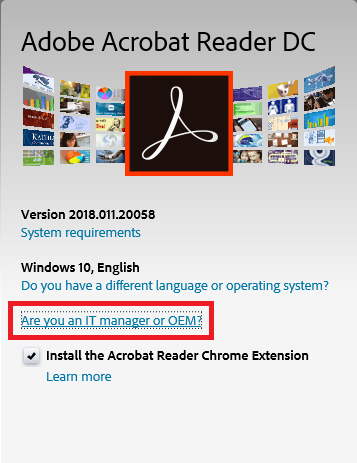

    Click Are you an IT manager or OEM (Figure 3).

    Figure 3
    Figure 3

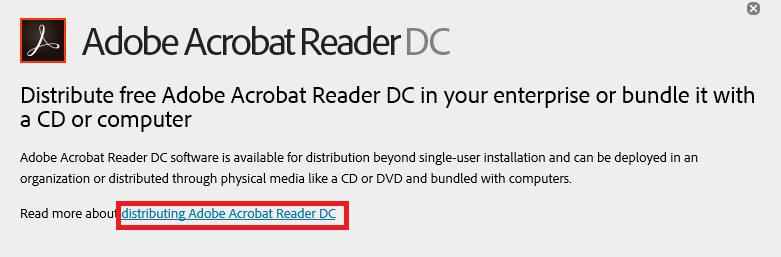

    A new browser window opens. Click distributing Adobe Acrobat Reader DC (Figure 4).

    Figure 4
    Figure 4

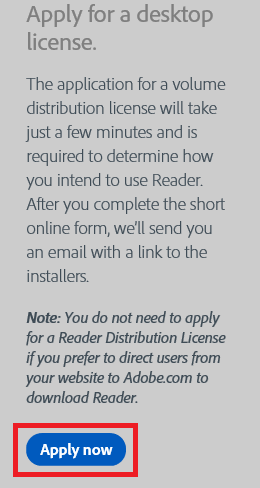

    A new browser tab opens. Scroll down and click on Apply now under Apply for a desktop license (Figure 5).

    Figure 5
    Figure 5

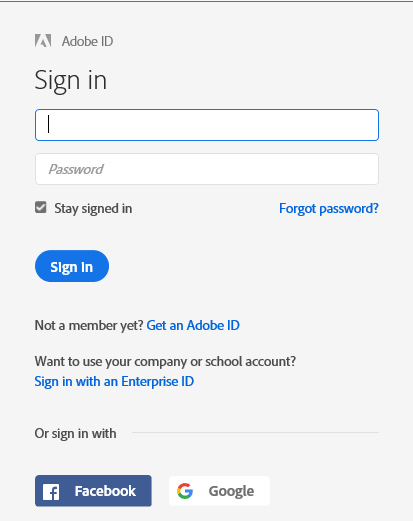

    Another browse tab opens. If you have an Adobe ID, sign in with it. If you do not have an Adobe ID, create an Adobe ID and then continue with this process (Figure 6).

    Figure 6
    Figure 6

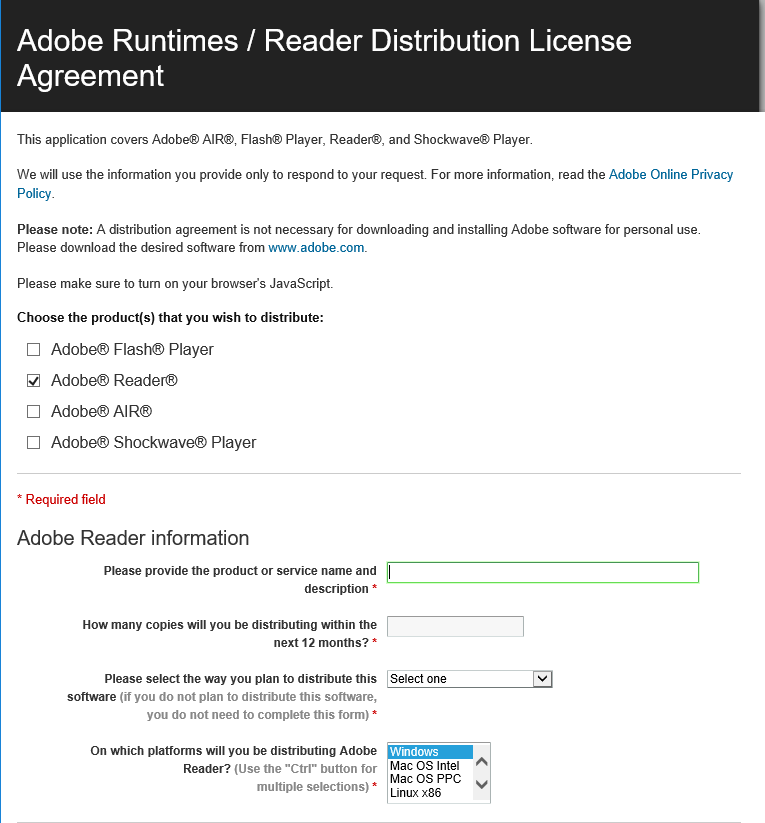

    Fill in the necessary information (Figure 7).

    Figure 7
    Figure 7

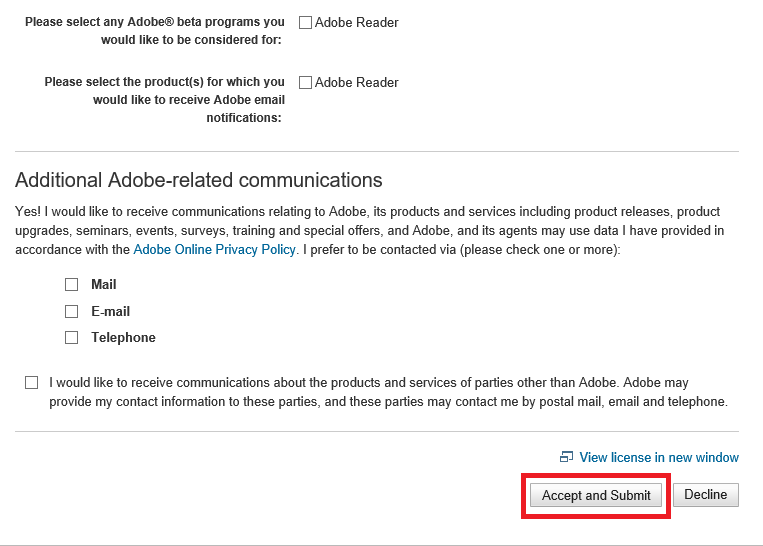

    Then click Accept and Submit (Figure 8).

    Figure 8
    Figure 8

    You will receive an e-mail from Adobe to verify the e-mail address you entered. Click the verification link in the e-mail. Adobe will send you another e-mail with the information necessary to download the Redistributable version of Acrobat Reader DC. In the second e-mail, click the link to download full installer for Adobe Reader DC. My email says Adobe Acrobat Reader XI, but the download is for Acrobat Reader DC.

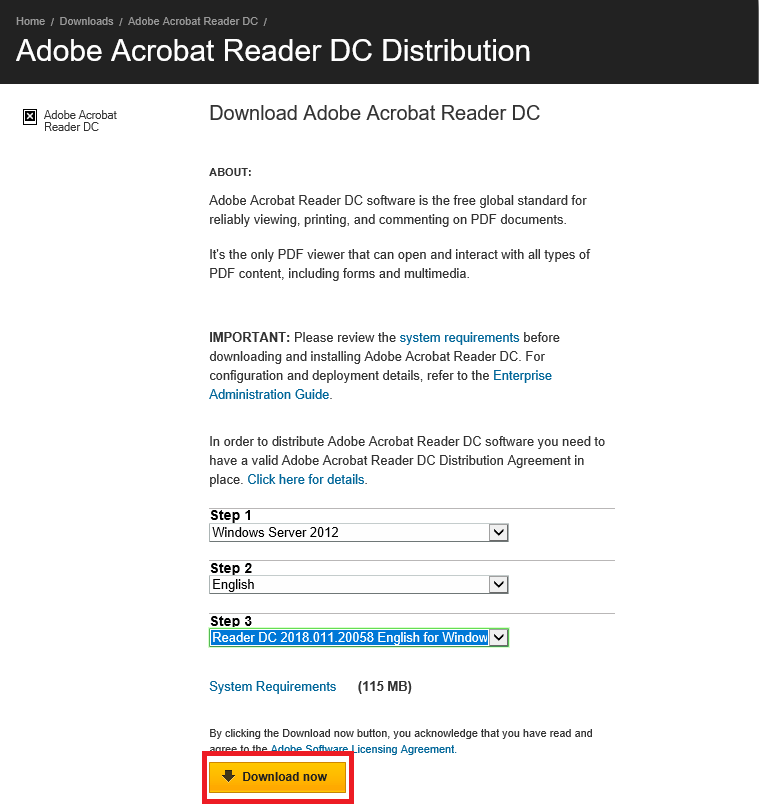

    Select the operating system and language that matches your destination operating system, select the download product and click Download now (Figure 9).

    Note: Adobe does not list options for Windows Server 2012 R2 or Windows Server 2016.

    Figure 9
    Figure 9

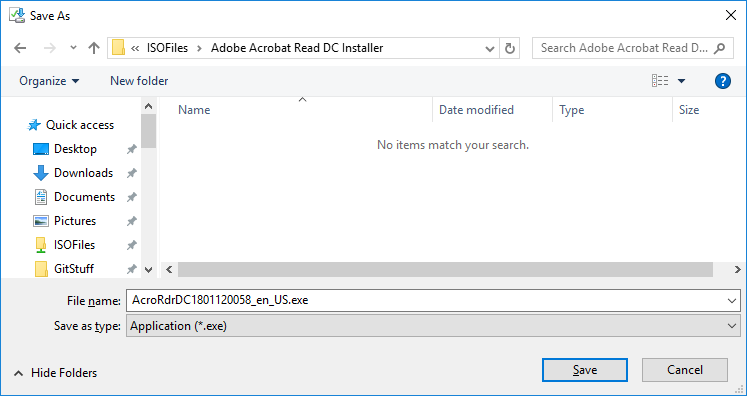

    Save the file to a central location (Figure 10).

    Figure 10
    Figure 10

    In the second e-mail from Adobe, click the link for Adobe enterprise deployment tools.

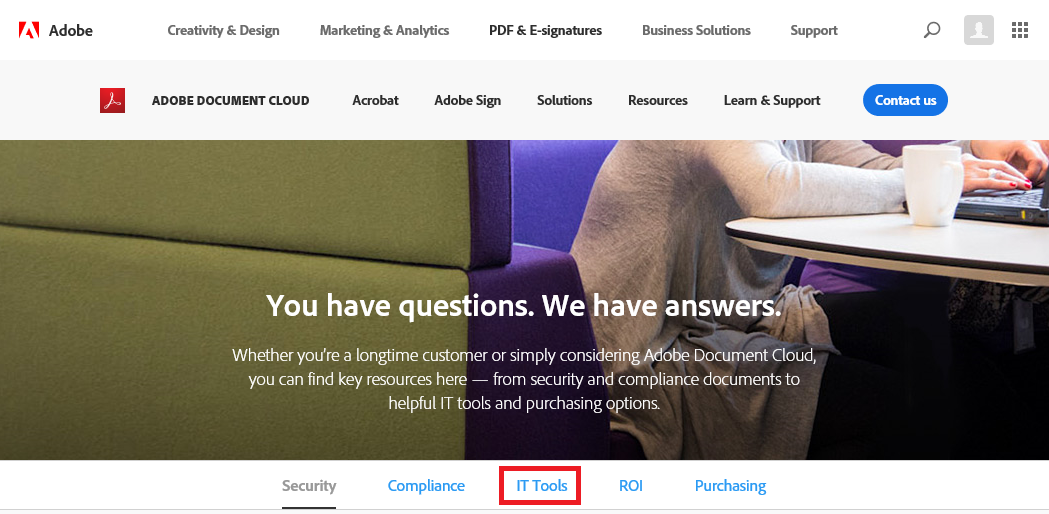

    Click IT Tools (Figure 11).

    Figure 11
    Figure 11

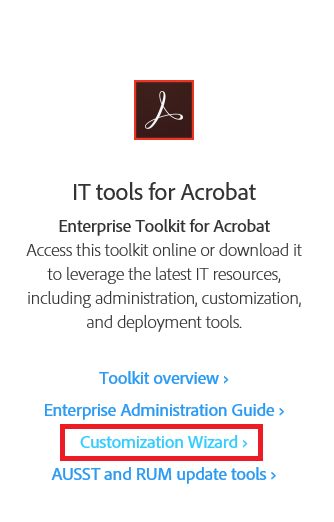

    Scroll down and click on Customization Wizard (Figure 12).

    Figure 12
    Figure 12

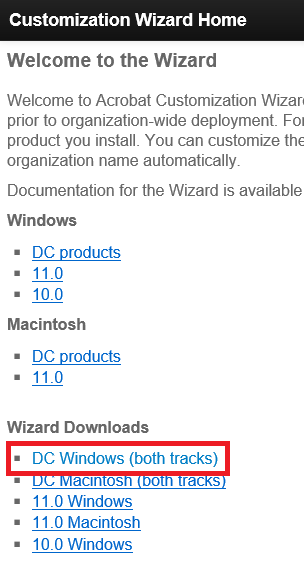

    On the Customization Wizard Home page, under Wizard Downloads, click on DC Windows (Both tracks) (Figure 13).

    Figure 13
    Figure 13

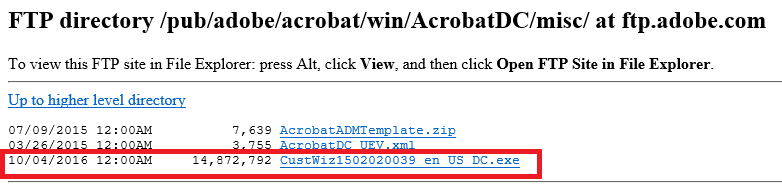

    Click on CustWiz1502020039_en_US_DC.exe (Figure 14).

    Figure 14
    Figure 14

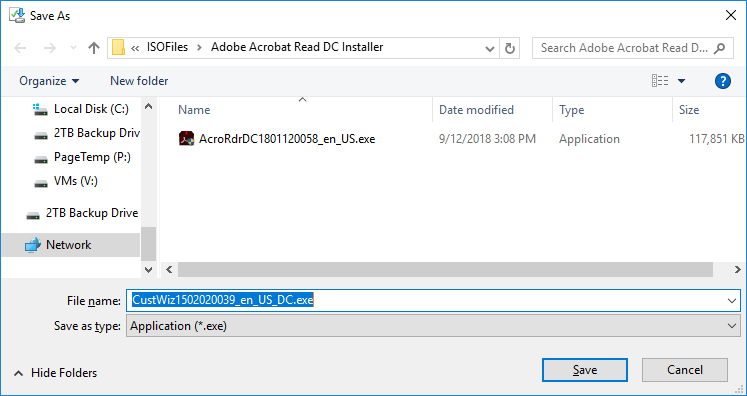

    Save the file to a central location (Figure 15).

    Figure 15
    Figure 15

    Exit your browser.

    Double-click CustWiz1502020039_en_US_DC.exe to install the Customization Wizard. Accept all the defaults during the installation.

    Extract the Acrobat Reader MSI file. Click Start, Run, type in “<path to download\ AcroRdrDC1801120058_en_US.exe” -sfx_o”<extractFolder> –sfx_ne and press Enter.

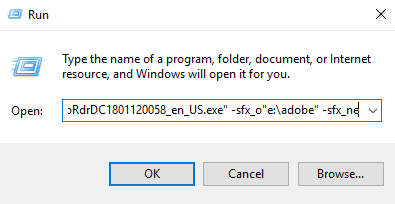

    For example (Figure 16),

    “\\192.168.1.254\ISOFiles\Adobe Acrobat Read DC Installer\AcroRdrDC1801120058_en_US.exe” -sfx_o”e:\adobe” -sfx_ne

    Note: There is no space in -sfx_o”e:\adobe”

    Figure 16
    Figure 16

    Note: See this Adobe link for more information. https://www.adobe.com/devnet-docs/acrobatetk/tools/Wizard/WizardDC/basics.html#expanding-exe-packages

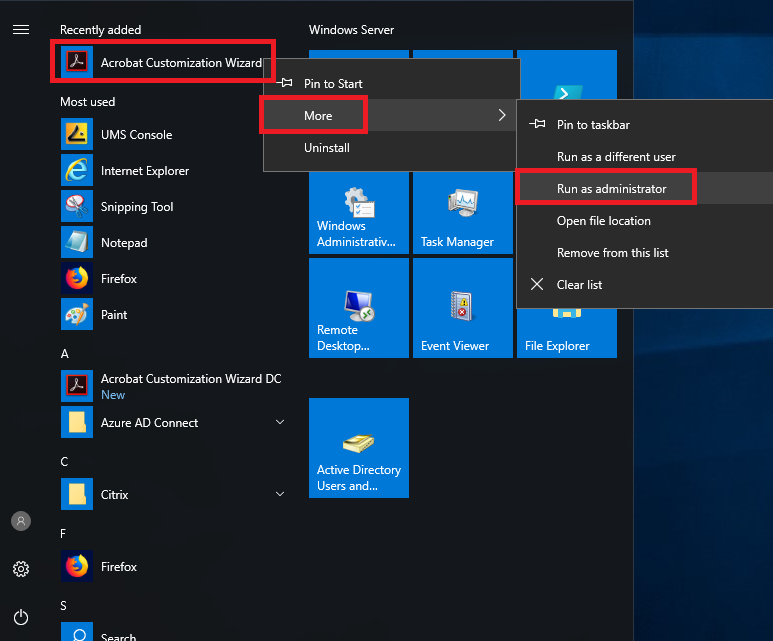

    Click Start, Adobe Customization Wizard DC and Run as administrator (Figure 17).

    Figure 17
    Figure 17

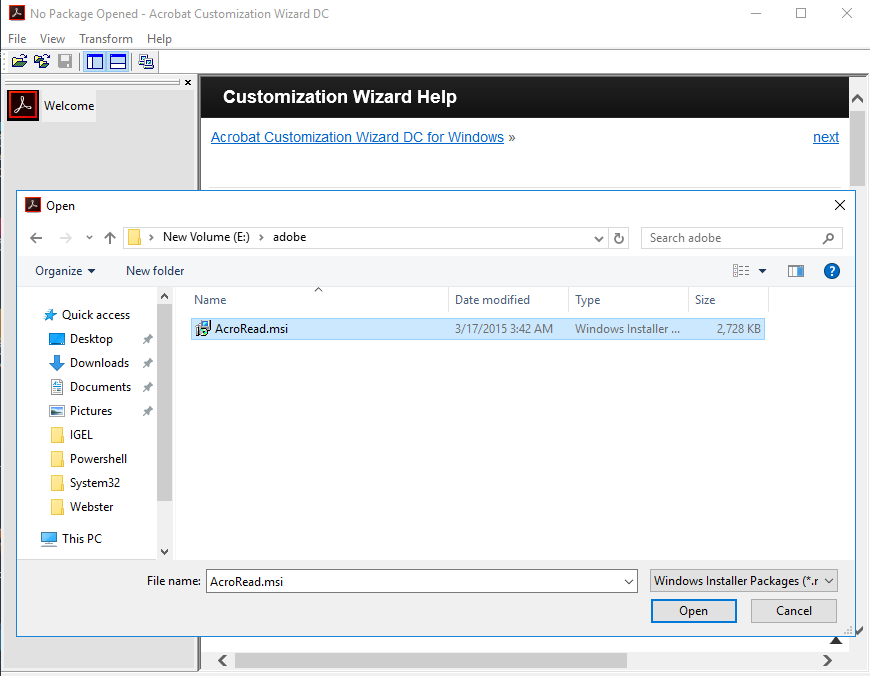

    Click File, Open Package, type in <Path>\AcroRead.msi and press Enter (Figure 18).

    Figure 18
    Figure 18

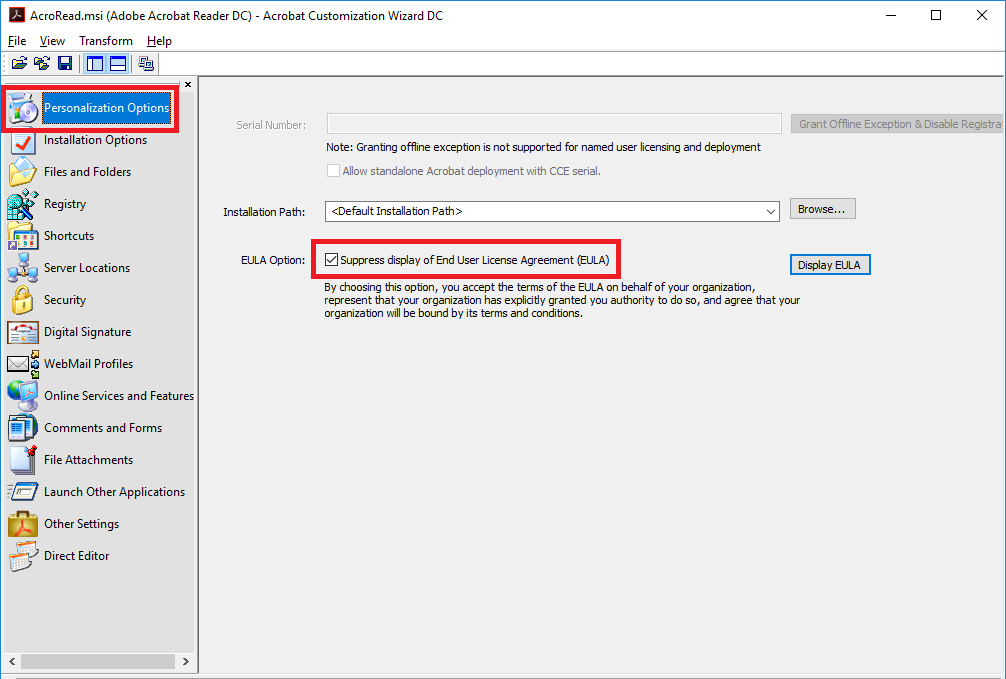

    Click Personalization Options and select Suppress display of End User License Agreement (EULA) (Figure 19). Selecting this option will prevent the EULA Agreement page from being displayed for every user the first time Acrobat Reader runs.

    Figure 19
    Figure 19

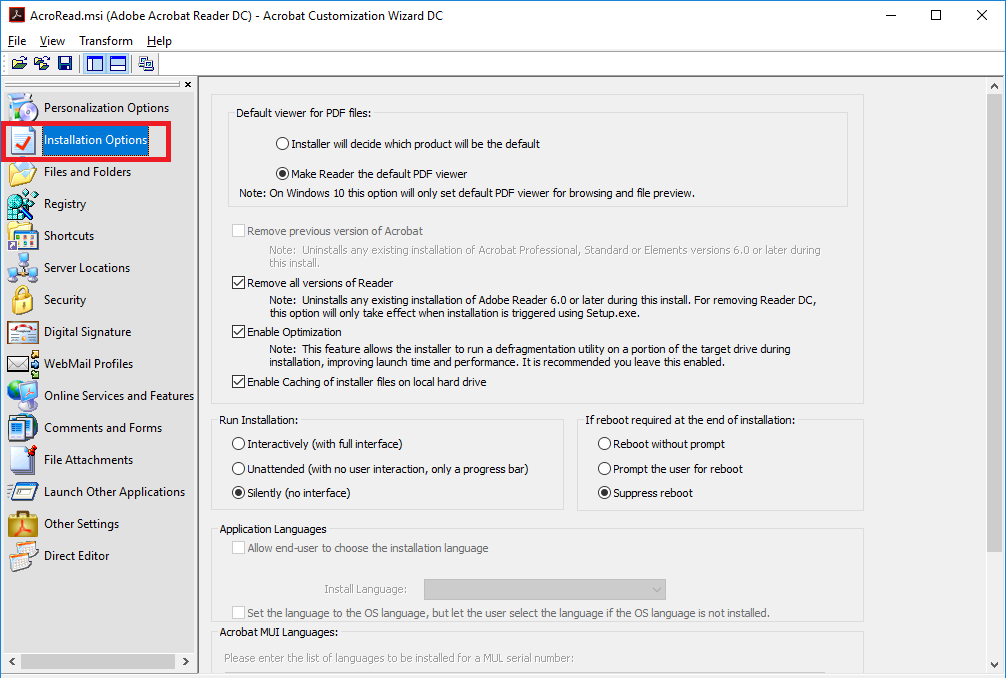

    Click Installation Options Figure 20. If you use both full Adobe Acrobat and Acrobat Reader, select which one will be the default. Select any other options you require. Since you will be installing a customized Acrobat Reader, you can ignore the options Run Installation and If reboot required at the end of installation.

    Figure 20
    Figure 20

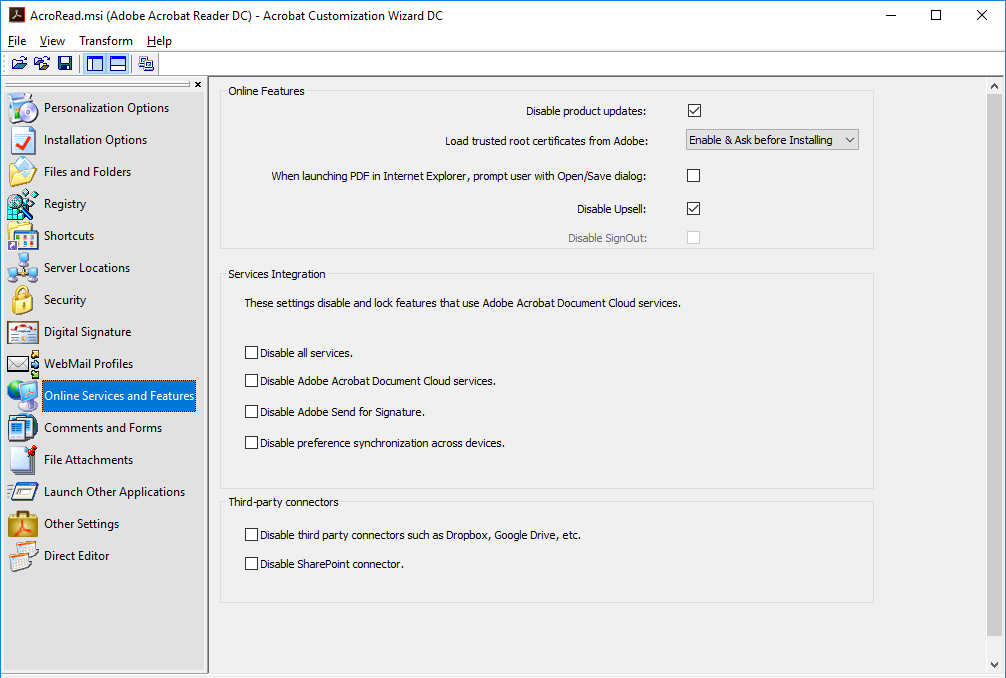

    Click Online Services and Features (Figure 21). Select Disable product updates and Disable Upsell. Select any other options you need disabled.

    Figure 21
    Figure 21

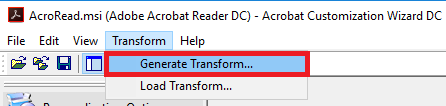

    Click Transform, Generate Transform (Figure 22).

    Figure 22
    Figure 22

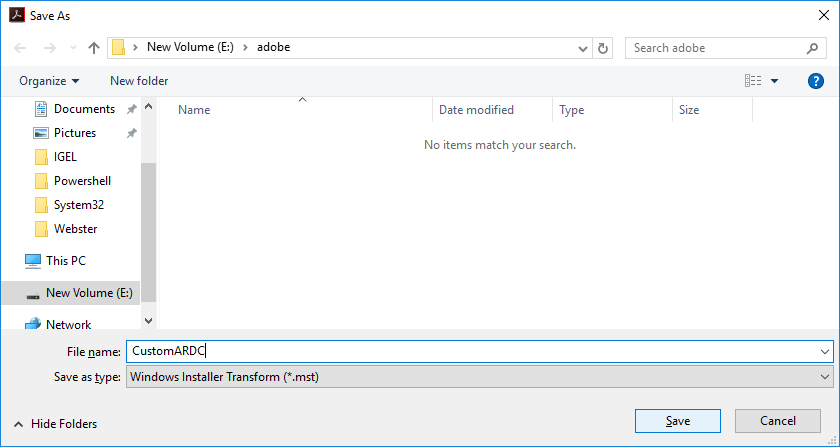

    Name the Transform file and save it (Figure 23).

    Figure 23
    Figure 23

    Note: If you get an error about access to setup.ini is denied, that means you did not start the wizard as administrator.

    Exit the Adobe Customization Wizard DC program.

    To install Acrobat Reader DC with your customizations:

    Click Start, Run, type in msiexec /i “<path>\acroread.msi” TRANSFORMS=”<path>\CustomARDC.mst” and press Enter.

    Note: TRANSFORMS must be in upper case.

    Start Acrobat Reader DC and the EULA Agreement page is not displayed.

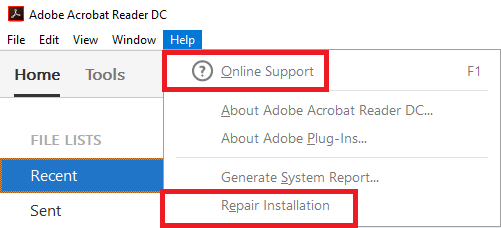

    Click the Help menu, and you will see two options you do not want in a multi-user or non-persistent desktop environment: Repair Adobe Reader Installation and Online Support (Figure 24).

    Figure 24
    Figure 24

    Note:  The following information is adapted from http://blog.stealthpuppy.com/deployment/deploying-adobe-reader-81 and still works for Acrobat Reader DC.

    There is no way to remove those options from the customization wizard or via a registry key. To remove the options, you need to create a JavaScript file and place it in the C:\Program Files (x86)\Adobe\Acrobat Reader DC\Reader\Javascripts folder.

    //HideMenu.js
    //Hides Help – Repair Adobe Reader Installation
    app.hideMenuItem(“DetectAndRepair”);
    //Help – Online Support
    app.hideMenuItem(“OnlineSupport”);

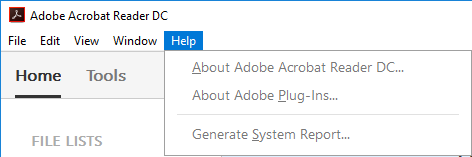

    When Acrobat Reader starts, it may take a few seconds for the JavaScript file to remove the Help menu items (Figure 25).

    Figure 25
    Figure 25

    Many menu items can be removed using the JavaScript file. See the link “JavaScript to Hide Menu Items” at http://blog.stealthpuppy.com/deployment/deploying-adobe-reader-81.

    You have now successfully customized your Acrobat Reader DC to work better in a virtualized application, desktop, and server environment.

    UPDATE 1

    Thanks to Citrix Technology Advocate DJ Eshelman, I realized I forgot to add that Adobe now has Group Policy ADM/ADMX files available.

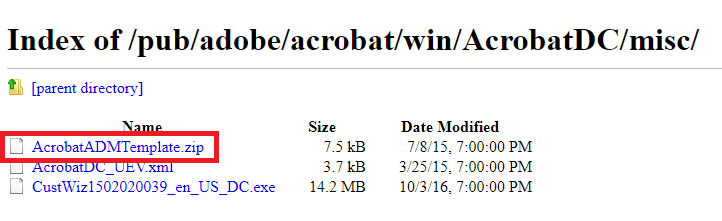

    Back on Figures 13 and 14, where you downloaded the Adobe Customization Wizard, there is a file that contains the Group Policy files (Figure 26).

    Click on AcrobatADMTemplate.zip and save the file to a central location.

    Figure 26
    Figure 26

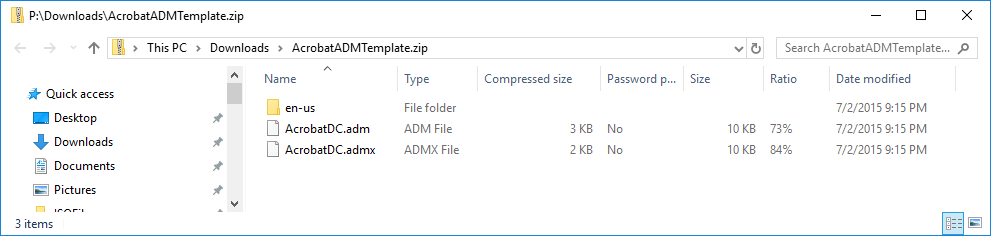

    Extract the files (Figure 27).

    Figure 27
    Figure 27

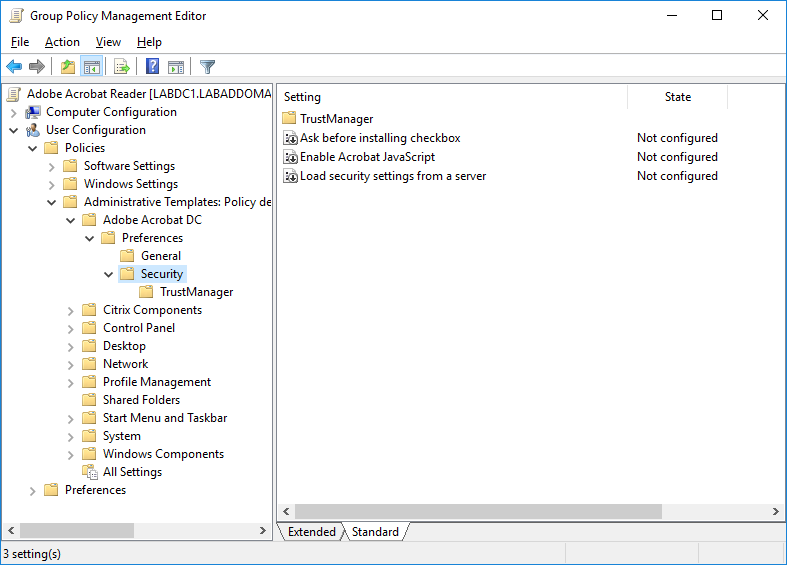

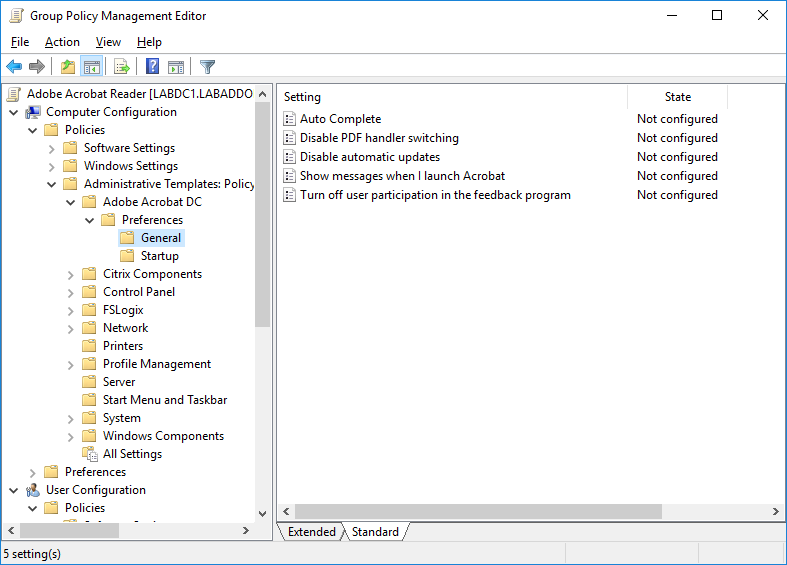

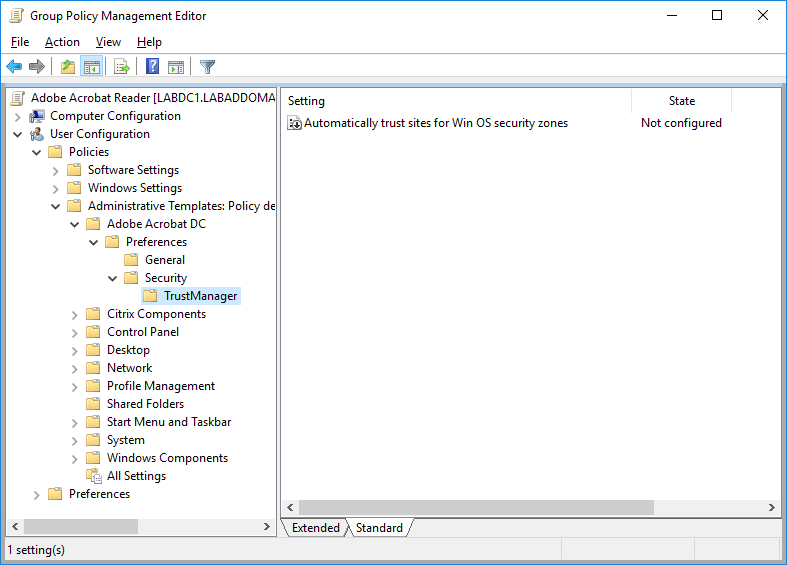

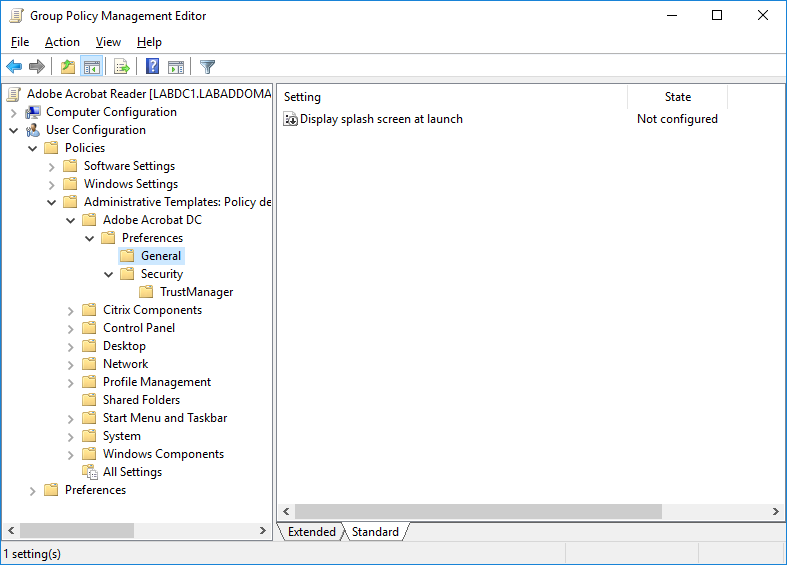

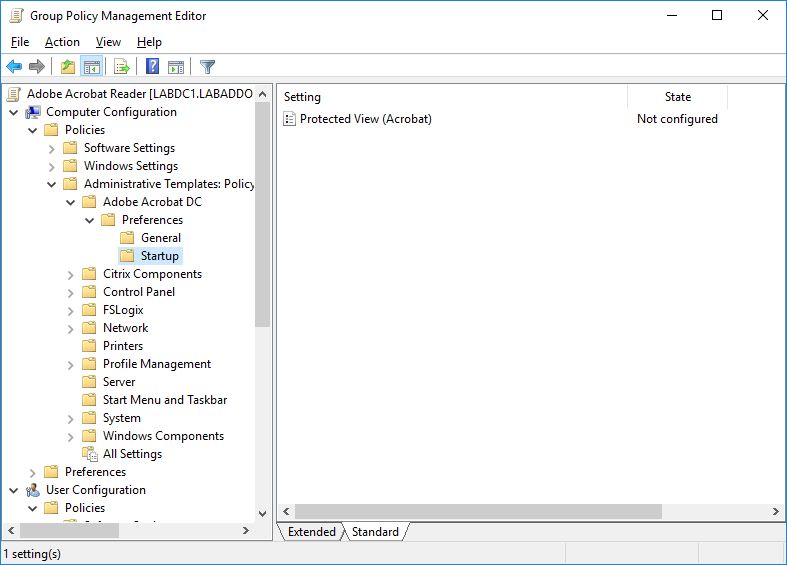

    Copy the required file(s) to where you store ADM or ADMX/ADML files. Create a Group Policy and you can see the settings that Adobe makes available as shown in Figures 28 through 32.

    Figure 28
    Figure 28
    Figure 29
    Figure 29
    Figure 30
    Figure 30
    Figure 31
    Figure 31
    Figure 32
    Figure 32

    Update 2

    This update comes from Microsoft Exchange MVP (and a personal friend and mentor) Michael B. Smith.

    I found the transform unnecessary. This is just another way.

    AcroRdrDC1801120058_en_US.exe /sAll /rs /msi /q DISABLE_DISTILLER=YES DISABLE_ASIAN_FONTS=YES EULA_ACCEPT=YES OWNERSHIP_STATE=2 DISABLE_PDFMAKER=YES DISABLEDESKTOPSHORTCUT=0 UPDATE_MODE=3

    For all the cmd line options: https://www.adobe.com/devnet-docs/acrobatetk/tools/AdminGuide/properties.html#command-line-example

    Update 3

    This update comes from CTA Carl Behrent.

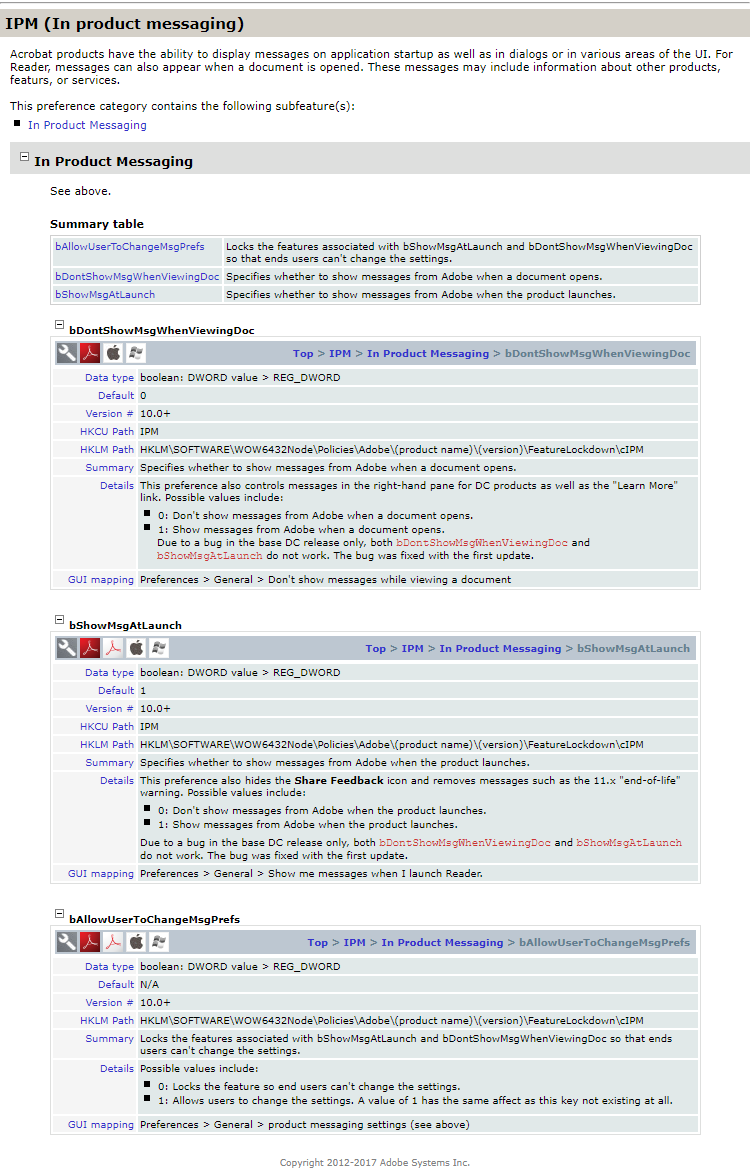

    Carl recommends setting the Adobe IPM (In Product Management) (Figure 33) registry keys via a Group Policy Preference (GPP).

    Figure 33
    Figure 33

    You can set these via a GPP, or, you set these in your master image’s registry and update your transform file. Before we update the transform file, there is one other registry setting to make.

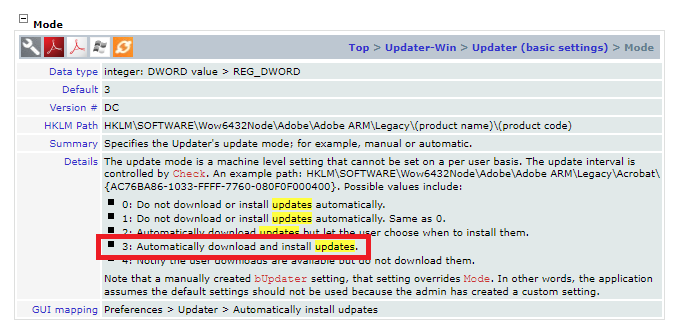

    Even though back in Figure 21 we disabled product updates, there is still one setting for updates that is set to Automatically download and install updates (Figure 34)!

    Figure 34
    Figure 34

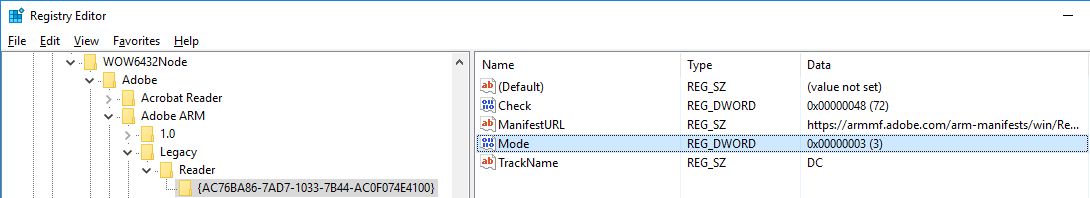

    Sure enough, after installing Adobe Acrobat Read DC using the customized transform file with product updates disabled, this registry key is still set to Automatically download and install updates (Figure35).

    Figure 35
    Figure 35

    You can either set that value to 0 in a GPP or set it in your master image and update your transform file.

    If you want to update your master image and then update the transform file, make the necessary changes in the master image’s registry, start the Adobe Customization Wizard, open the MSI file and then load your customized transform file.

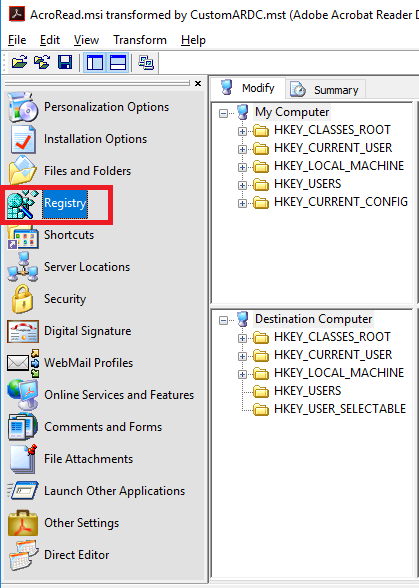

    Click on Registry (Figure 36).

    Figure 36
    Figure 36

    Expand HKLM/SOFTWARE/WOW6432Node/Adobe/Adobe ARM/Legacy/Reader/{GUID}

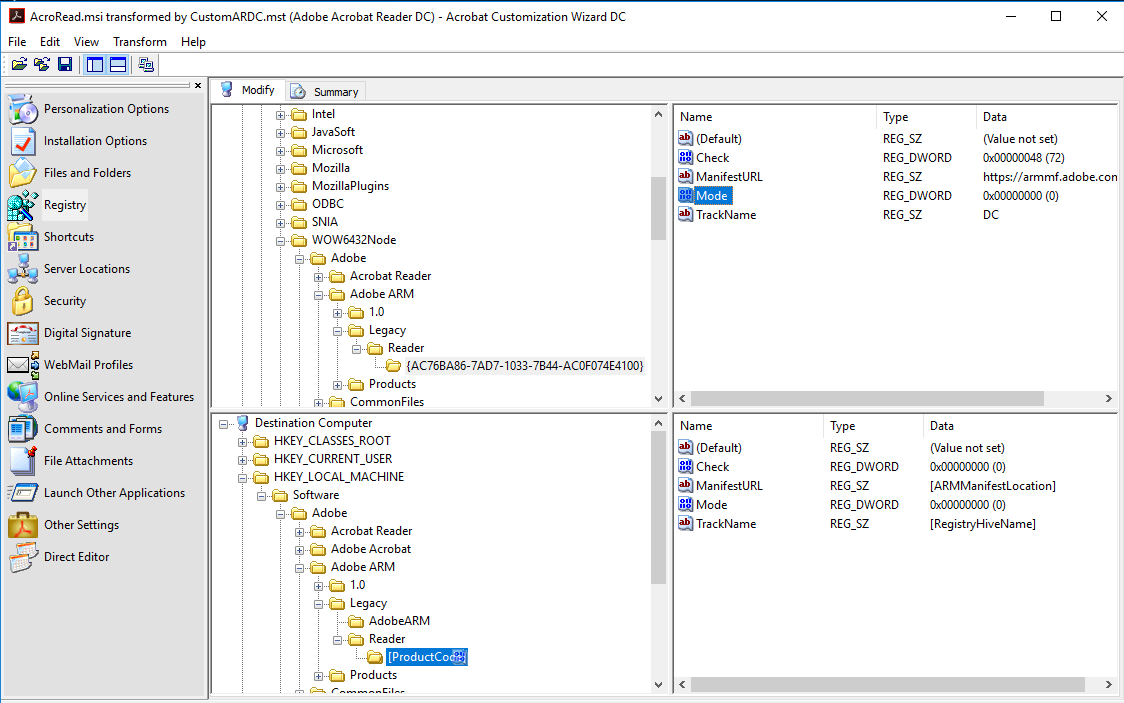

    Click on the Mode value and drag and drop it into the Destination Computer window into HKLM/Software/Adobe/Adobe ARM/Legacy/Reader/[ProductCode] (Figure 37).

    Figure 37
    Figure 37

    Even after all these changes, we are still not done. Adobe keeps the Adobe Acrobat Update Service set to Automatically start (Figure 38).

    Figure 38
    Figure 38

    Again, this is something you can fix with a GPP or Stop and Disable the service in your master image.

    After you make all the changes Carl Behrent recommends, you should be able to rest better knowing your users should not see any Adobe messages and updates to Adobe Reader DC should not happen.

    In this article, you learned to:

    • sign up to distribute the free Adobe Acrobat Reader version DC
    • download the distributable file
    • download the Adobe Customization Wizard
    • extract the Acrobat Reader MSI file
    • customize the MSI file
    • install the customized file on your master image
    • remove additional menu items using JavaScript

    Thanks

    Webster

    About Carl Webster

    Webster is a Sr. Solutions Architect for Choice Solutions, LLC and specializes in Citrix, Active Directory and Technical Documentation. Webster has been working with Citrix products for many years starting with Multi-User OS/2 in 1990.

    View all posts by Carl Webster

    2 Responses to “Learning to Install Adobe Acrobat Reader DC”

    1. WILLIAM P BROWN Says:

      I am creating a transform for DC 19 19.008.20071.

      I would like to suppress the “Repair Installation” and “Online Support” .

      I followed the instructions you included above. The HideMenu.js file does not seem to suppress these menu items. Could the items have different names in the new version?

      hideMenuItem(“DetectAndRepair”)
      hideMenuItem(“OnlineSupport”)

      Any guidence would be appreciated.
      Thank you,
      Pete Brown

      Reply

      • Carl Webster Says:

        They appear to be the same name in my Adobe Acrobat DC.

        [cName:DetectAndRepair]
        [cName:OnlineSupport]

        I no longer have my testing VM for this article so I can’t verify this right now.

        If you are on Twitter, you may want to reach out to fellow CTP Aaron Parker @StealthPuppy.

        Webster

        Reply
