  • 03 Building Webster’s Lab V2 – Install VMware ESXi 7.0

    May 26, 2021

    VMware

    [Updated 27-Aug-2021]

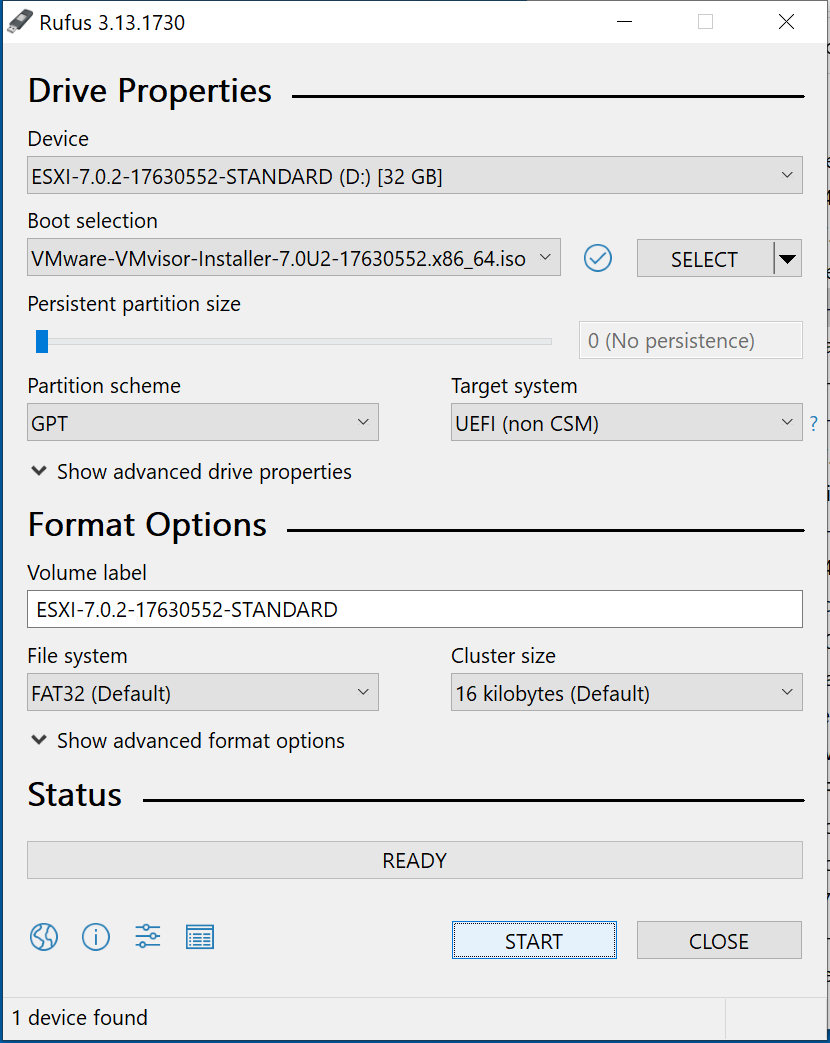

    Installing VMware ESXi 7.0 is easy as there are not many installation options. It is almost a “Next, Next, Install, Finish, Reboot” process. The first thing is to download the latest ESXi 7.0 ISO from VMware. After I downloaded the ISO, I used Rufus to create a bootable 32GB thumb drive from my laptop, as shown in Figure 1.

    Note: You must have an account on VMware.com to download any VMware software.

    Note: TinkerTry provides a 32GB thumb drive with each of their servers.

    Figure 1
    Figure 1

    I used the Intelligent Platform Management Interface (IPMI) built into the TinkerTry server to install. Before IPMI is usable, configure IPMI in the server’s BIOS.

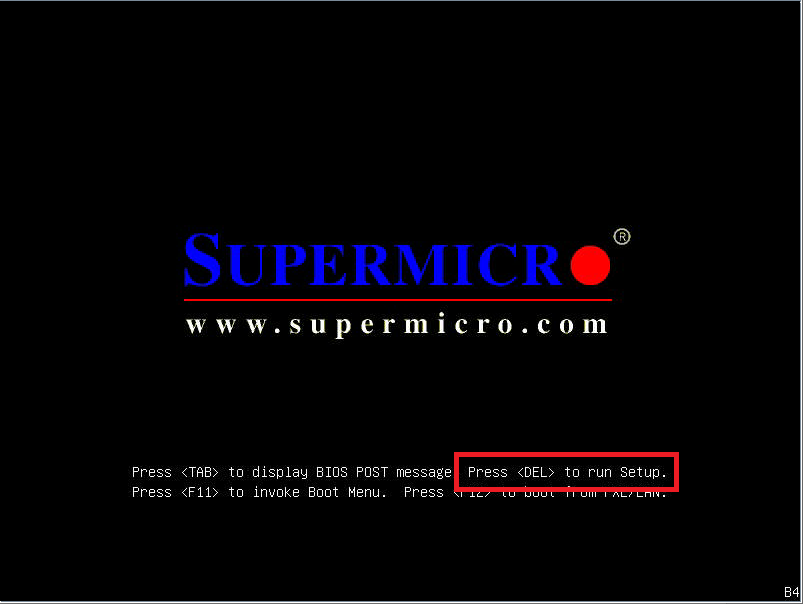

    To configure IPMI in the BIOS of a TinkerTry Server, power on the server and press Delete on the appropriate screen, as shown in Figure 2.

    Figure 2
    Figure 2

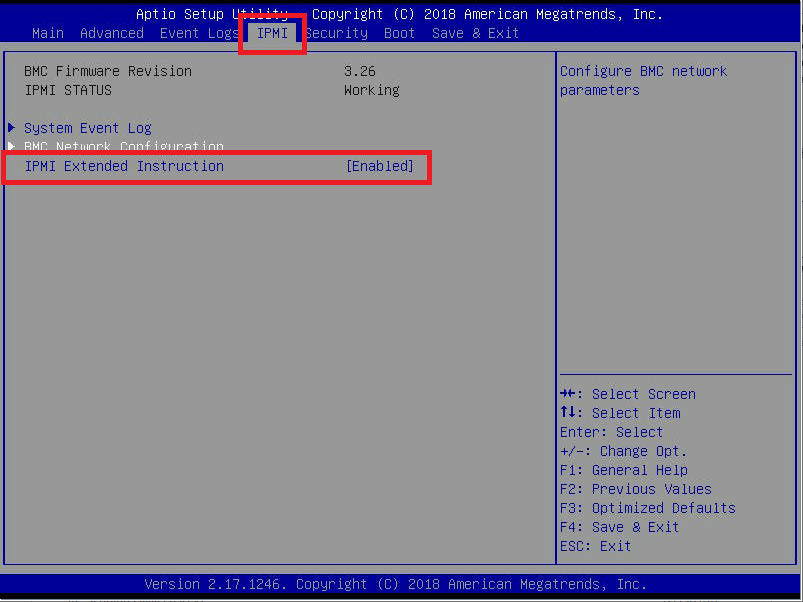

    Using the arrow keys, navigate to IPMI, press the Down Arrow to select IPMI Extended Instruction, as shown in Figure 3, and press Enter.

    Note: Initially, this setting is Disabled, but I can’t take a screenshot while it is disabled.

    Figure 3
    Figure 3

    Select Enabled and press Enter, as shown in Figure 4.

    Figure 4
    Figure 4

    Press Up Arrow to select BMC Network Configuration and press Enter, as shown in Figure 5.

    Figure 5
    Figure 5

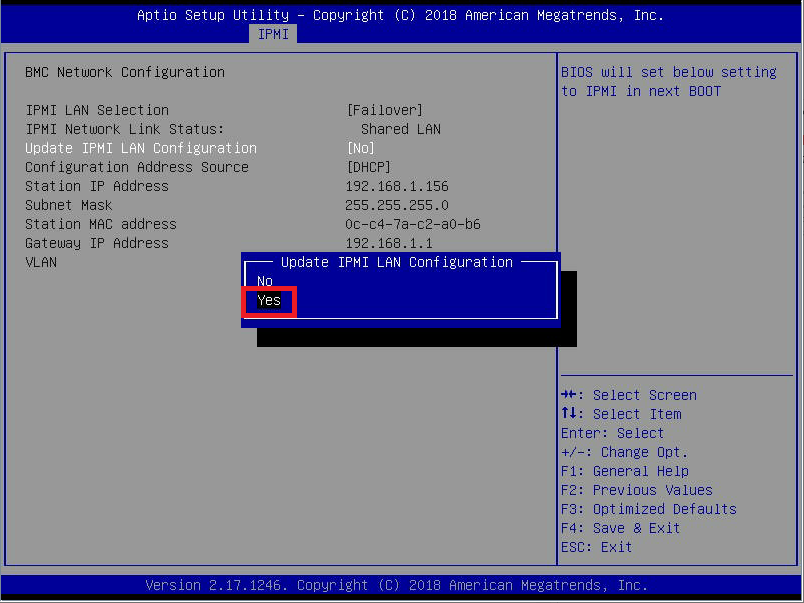

    Update IPMI LAN Configuration is selected. Press Enter, down arrow to select Yes, and press Enter, as shown in Figure 6.

    Figure 6
    Figure 6

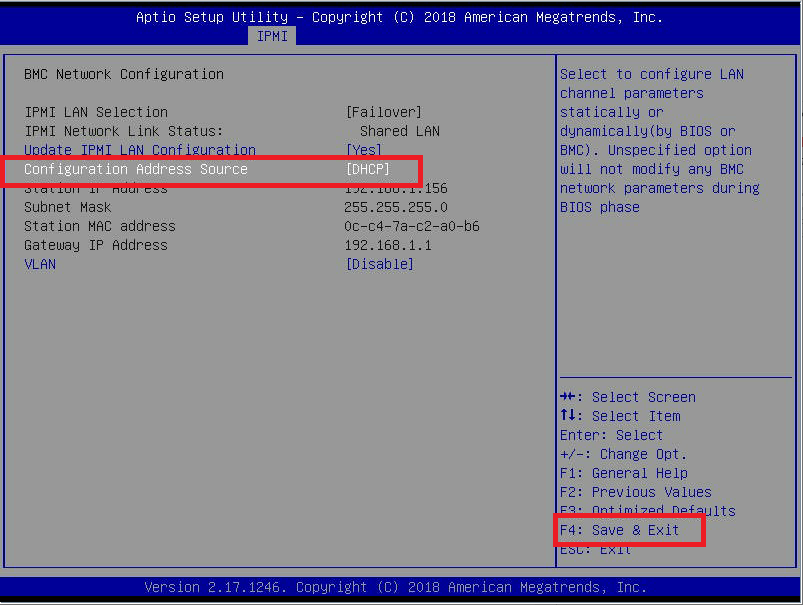

    If you want to continue using DHCP, press F4 to Save & Exit, shown in Figure 7.

    Figure 7
    Figure 7

    Select Yes to the Save & Exit Setup dialog, as shown in Figure 8.

    Figure 8
    Figure 8

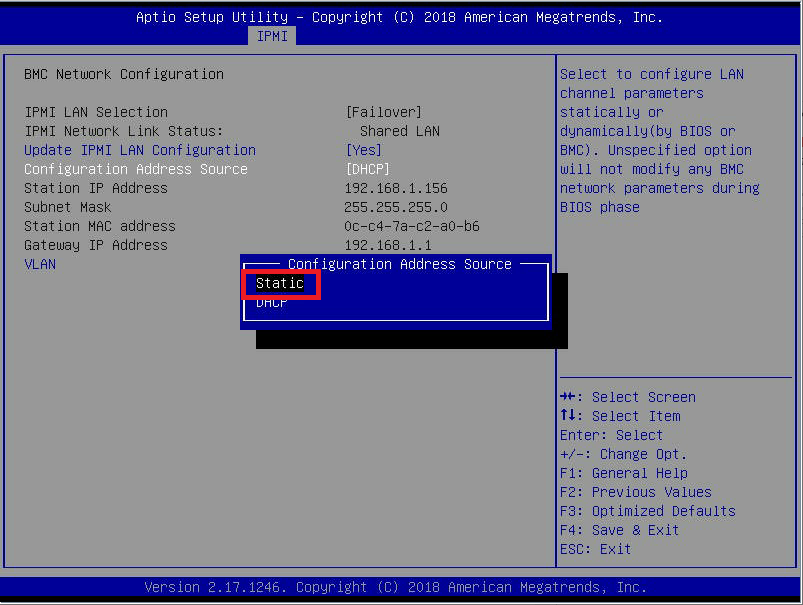

    If, like me, you prefer to use a static IP address, press Enter, use the arrow keys to select Static, and press Enter, as shown in Figure 9.

    Figure 9
    Figure 9

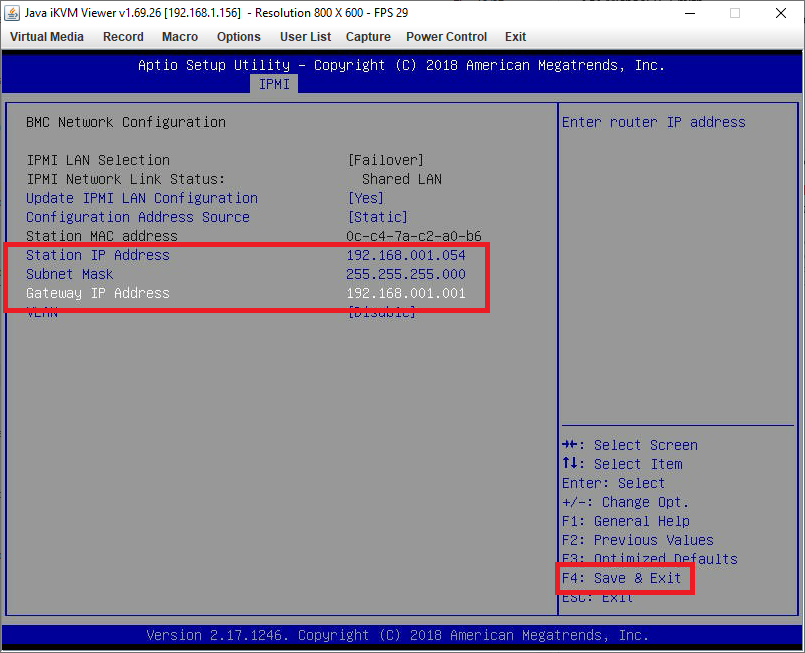

    Use the arrow keys to navigate to and configure the Station IP Address, Subnet Mask, and Gateway IP Address, then press F4 to Save & Exit as shown in Figure 10.

    Figure 10
    Figure 10

    Select Yes to the Save & Exit Setup dialog, as shown in Figure 11.

    Figure 11
    Figure 11

    Now that you have configured IPMI, IPMI is used to do the install.

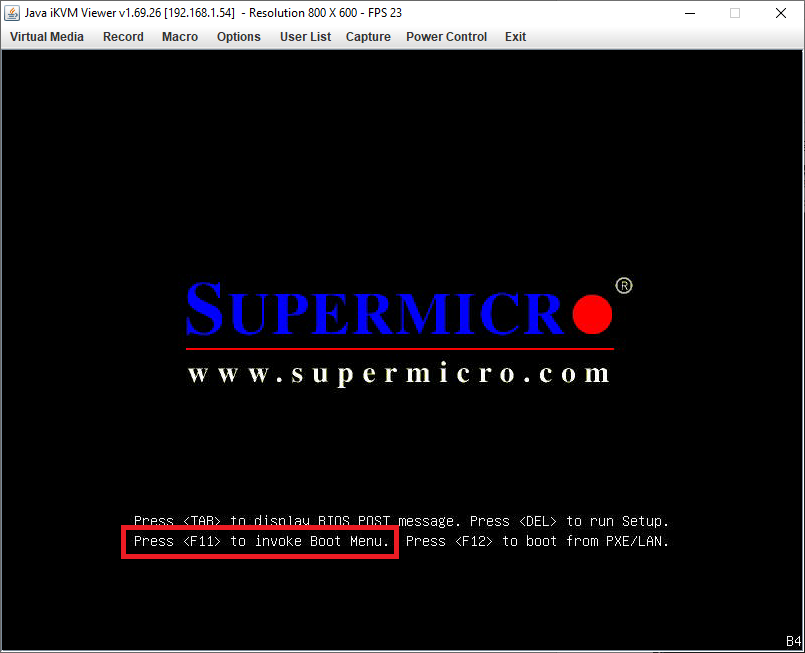

    As the server restarts, press F11 on the appropriate screen to start the Boot Menu, shown in Figure 12.

    Figure 12
    Figure 12

    The Rufus utility that created the bootable thumb drive for ESXi 7.0 Update 2 created a drive usable with either a legacy BIOS or UEFI.

    Note: See this article for an explanation of UEFI. What Is UEFI, and How Is It Different from BIOS?

    Depending on your BIOS configuration, select either SanDisk or UEFI: SanDisk, as shown in Figure 13.

    Note: SanDisk is the brand of thumb drive TinkerTry provided with their server.

    Figure 13
    Figure 13

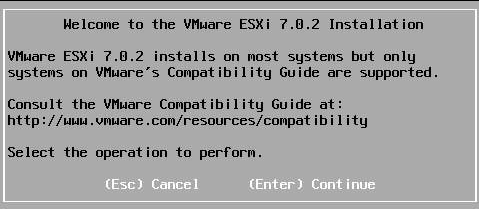

    After selecting to boot from the SanDisk thumb drive, the ESXi installer begins. After a few minutes, the first installation popup appears. Press Enter on the Welcome to the VMware ESXi 7.0 Installation popup to continue the installation, as shown in Figure 14.

    Figure 14
    Figure 14

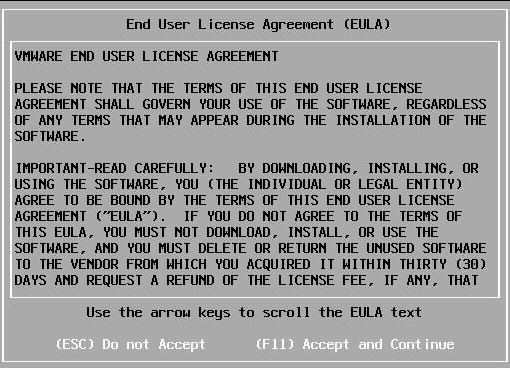

    Press F11 to accept the End User License Agreement (EULA), as shown in Figure 15.

    Figure 15
    Figure 15

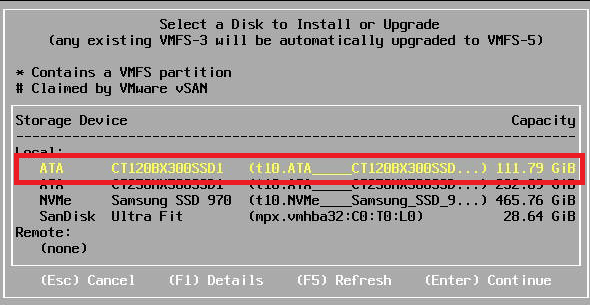

    Select the drive to install ESXi 7.0 using the Up and Down arrow keys and press Enter, as illustrated in Figure 16. My hosts have three drives, I install ESXi 7.0 on the 120GB drive, and the 250GB drive is for Host Cache. The 500GB drive is for a local datastore (barely large enough for vCenter 7’s Tiny configuration option).

    Note: 120GB, 250GB, and 500GB are the advertised sizes. Usable capacity, as shown in Figure 16, is different.

    Figure 16
    Figure 16

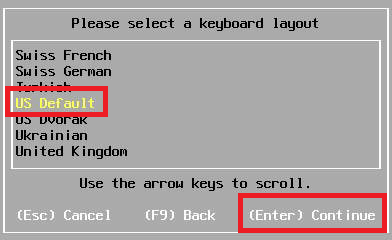

    Select the keyboard layout and press Enter, as illustrated in Figure 17.

    Figure 17
    Figure 17

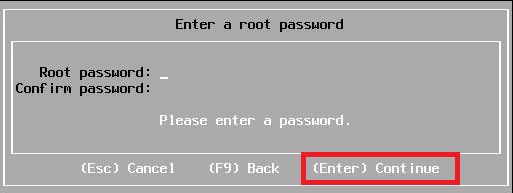

    Type in your Root password and press Enter, as illustrated in Figure 18.

    Figure 18
    Figure 18

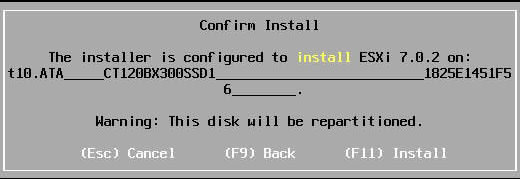

    Press F11 to confirm the hard drive for the installation, as shown in Figure 9. If the hard drive is incorrect, press F9 to return to the previous screen, select the correct hard drive and continue.

    Note: How do I know the drive shown is the correct drive? Referring back to Figure 16, my hosts have drives of 120GB, 250GB, and 500GB. I selected the 120GB drive on which to install ESXi. That drive is from Crucial Technologies and their series BX300.  CT120BX300SSD tells me the drive is from Crucial Technologies with a size of 120GB and model BX300.

    Figure 19
    Figure 19

    The installation of ESXi 7.0 begins, as shown in Figure 20.

    Figure 20
    Figure 20

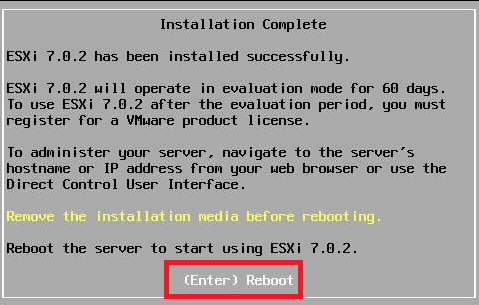

    When the installation completes, physically remove the installation media (SanDisk thumb drive) from the server and press Enter to reboot the new ESXi 7.0 virtualization host, as shown in Figure 21.

    Figure 21
    Figure 21

    Once the server reboots, you have done the easy part. You now have an ESXi 7.0 host ready for the initial configuration, as shown in Figure 22.

    Figure 22
    Figure 22

    Up next: Initial ESXi Host Configuration.
