  • Citrix XenDesktop Personal vDisk Stats using Microsoft Excel and PowerShell V2.1

    February 1, 2014

    Blog, PowerShell, XenDesktop 5.x

    Yeah, I know.  I just updated the script a couple of days ago and here is another update.  Well, I just couldn’t stand it that the script couldn’t support sending email over anything but the default SMTP port 25.  I just had to fix that but doing so required basing the script on PowerShell version 3.  The script now requires at least PowerShell version 3 and there are a couple of more parameters.


    The script will not work for sending emails if you are using PowerShell version 2 so the first line in the script is now:

    1
    #Requires -Version 3

    The two new parameters are SmtpPort and UseSSL. SmtpPort sets the SMTP port and UseSSL tells whether to use SSL for making the connection to the SmtpServer.

    In order to send authenticated SMTP emails, a username and password are required.

    1

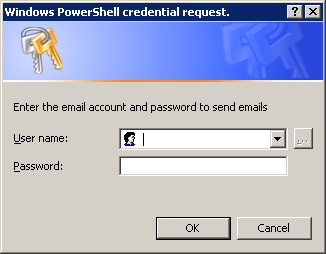

    $emailCredentials = Get-Credential -Message "Enter the email account and password to send emails"
    Figure 1
    Figure 1

    The credentials are the same used when configuring an email client.  i.e. SomeUser@emaildomain.com and the account’s password. I tested this using my Office365 account and it worked with no issues.

    The email body is read in from a file.  I use the -BodyAsHtml parameter for Send-MailMessage.  To get line breaks just use <br /> at the end of each line and for spacing lines.  The file I used for my testing looks like this:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    <br />
    <br />
    Your Personal vDisk space has reached over 90% of its capacity.   <br />
    You should resolve this as soon as possible before your Personal <br />
    vDisk fills up and needs to be reset.  When that happens, you <br />
    will need to reinstall your applications.<br />
    <br />
    You should move your 'User Data' from your C and or PvD drive <br />
    and it should be kept on your home drive.  The free space on your <br />
    workstation is to be used for application installs, temp files, <br />
    and other general system and application configurations.<br />
    <br />
    Let us know if you need any help.<br />
    <br />
    Thanks<br />
    <br />
    <br />
    The XenDesktop Help Desk Team at CarlWebster.com<br />

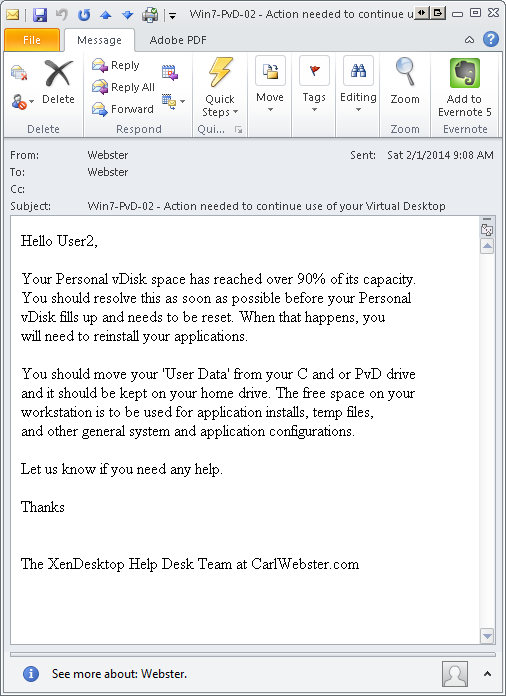

    Which looks like this in Outlook 2010.

    Figure 2
    Figure 2

    Example of running the script:

    1
    .\get-pvdstatsexcel.ps1 -AdminAddress xd71studio1 -XDVersion 7 -SmtpServer smtp.office365.com -SmtpPort 587 -UseSSL -From Webster@CarlWebster.com -InputFile c:\webster\emailbody.txt -verbose

    Example screen output:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    PS C:\webster> .\get-pvdstatsexcel.ps1 -AdminAddress xd71studio1 -XDVersion 7 -SmtpServer smtp.office365.com -SmtpPort 5
    87 -UseSSL -From Webster@CarlWebster.com -InputFile c:\webster\emailbody.txt -verbose
    VERBOSE: 02/01/2014 09:45:00: Retrieving all XenDesktop Catalog names
    VERBOSE: 02/01/2014 09:45:00:
    VERBOSE: 02/01/2014 09:45:00:
    VERBOSE: 02/01/2014 09:45:00: Using Controller   : xd71studio1
    VERBOSE: 02/01/2014 09:45:00: XenDesktop version : 7
    VERBOSE: 02/01/2014 09:45:00: Smtp Server        : smtp.office365.com
    VERBOSE: 02/01/2014 09:45:00: Smtp Port          : 587
    VERBOSE: 02/01/2014 09:45:00: Use SSL            : True
    VERBOSE: 02/01/2014 09:45:00: From               : Webster@CarlWebster.com
    VERBOSE: 02/01/2014 09:45:00: Input File         : c:\webster\emailbody.txt
    VERBOSE: 02/01/2014 09:45:00: PoSH version       : 3.0
    VERBOSE: 02/01/2014 09:45:00:
    VERBOSE: 02/01/2014 09:45:00: Script start       : 02/01/2014 09:45:00
    VERBOSE: 02/01/2014 09:45:00:
    VERBOSE: 02/01/2014 09:45:00:
    VERBOSE: 02/01/2014 09:45:00: Get VMs for Catalog Win7 WC PvD Test
    VERBOSE: 02/01/2014 09:45:00:  Processing VM Win7-PvD-01
    VERBOSE: 02/01/2014 09:45:01:  Processing VM Win7-PvD-02
    VERBOSE: 02/01/2014 09:45:01:  Processing VM Win7-PvD-03
    VERBOSE: 02/01/2014 09:45:01: Creating CSV file C:\webster\Win7 WC PvD Test_PvD_Stats.csv
    VERBOSE: Performing operation "Export-Csv" on Target "C:\webster\Win7 WC PvD Test_PvD_Stats.csv".
    VERBOSE: 02/01/2014 09:45:01: Creating Summary CSV file C:\webster\Summary_PvD_Stats.csv
    VERBOSE: Performing operation "Export-Csv" on Target "C:\webster\Summary_PvD_Stats.csv".
    VERBOSE: 02/01/2014 09:45:01: Sending emails
    VERBOSE: 02/01/2014 09:45:14:  Sending email to webster@carlwebster.com
    VERBOSE: 02/01/2014 09:45:19: CSV Processing complete
    VERBOSE: 02/01/2014 09:45:19: Start creating Excel file and worksheets
    VERBOSE: 02/01/2014 09:45:19: Setup Excel
    VERBOSE: The object written to the pipeline is an instance of the type
    "Microsoft.Office.Interop.Excel.ApplicationClass" from the component's primary interop assembly. If this type exposes
    different members than the IDispatch members, scripts written to work with this object might not work if the primary
    interop assembly is not installed.
    VERBOSE: 02/01/2014 09:45:19: Get Summary CSV file
    VERBOSE: 02/01/2014 09:45:21:  Adding summary row for Win7-PvD-02
    VERBOSE: 02/01/2014 09:45:22: Deleting C:\webster\Summary_PvD_Stats.csv
    VERBOSE: Performing operation "Remove file" on Target "C:\webster\Summary_PvD_Stats.csv".
    VERBOSE: 02/01/2014 09:45:22: Summary sheet completed
    VERBOSE: 02/01/2014 09:45:22: Start processing catalogs
    VERBOSE: 02/01/2014 09:45:23: Get CSV file for Catalog Win7 WC PvD Test
    VERBOSE: 02/01/2014 09:45:24:  Adding row for Win7-PvD-01
    VERBOSE: 02/01/2014 09:45:25:  Adding row for Win7-PvD-02
    VERBOSE: 02/01/2014 09:45:25:  Adding row for Win7-PvD-03
    VERBOSE: 02/01/2014 09:45:26: Deleting C:\webster\Win7 WC PvD Test_PvD_Stats.csv
    VERBOSE: Performing operation "Remove file" on Target "C:\webster\Win7 WC PvD Test_PvD_Stats.csv".
    VERBOSE: 02/01/2014 09:45:26: Processing worksheets is complete
    VERBOSE: 02/01/2014 09:45:26: Saving Excel file
    VERBOSE: Performing operation "Remove variable" on Target "Name: Excel".
    VERBOSE: 02/01/2014 09:45:26: Excel file C:\webster\PvDStats_2014-02-01.xlsx is ready for use
    VERBOSE: Performing operation "Stop-Process" on Target "EXCEL (3324)".
    VERBOSE: 02/01/2014 09:45:26: Script started: 02/01/2014 09:45:00
    VERBOSE: 02/01/2014 09:45:26: Script ended: 02/01/2014 09:45:26
    VERBOSE: 02/01/2014 09:45:26: Elapsed time: 0 days, 0 hours, 0 minutes, 26.5 seconds
    PS C:\webster>

    What happens if you are supposed to use SSL and you don’t?

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    VERBOSE: 02/01/2014 09:47:43: Sending emails
    VERBOSE: 02/01/2014 09:47:52:  Sending email to webster@carlwebster.com
    Send-MailMessage : The SMTP server requires a secure connection or the client was not authenticated. The server
    response was: 5.7.1 Client was not authenticated
    At C:\webster\Get-PvDStatsExcel.ps1:746 char:6
    +                     Send-MailMessage -To $emailTo -Subject $emailSubject -Body $emailBody -Smtp ...
    +    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : InvalidOperation: (System.Net.Mail.SmtpClient:SmtpClient) [Send-MailMessage], SmtpExcept
    ion
    + FullyQualifiedErrorId : SmtpException,Microsoft.PowerShell.Commands.SendMailMessage

    The rest of the script will continue to run and the Excel file is created and saved.  Only the emails will not be sent.

    I believe I have included lots of great help text.

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    PS C:\webster> get-help .\get-pvdstatsexcel.ps1 -full
    NAME
    C:\webster\Get-PvDStatsExcel.ps1
    SYNOPSIS
    Creates an Excel spreadsheet containing Citrix XenDesktop Personal vDisk (PvD) usage statistics.
    SYNTAX
    C:\webster\Get-PvDStatsExcel.ps1 [[-XDCatalogName] <String>] [[-AdminAddress] <String>] [[-XDVersion] <Int32>] [<CommonParameters>]
    C:\webster\Get-PvDStatsExcel.ps1 [[-XDCatalogName] <String>] [[-AdminAddress] <String>] [[-XDVersion] <Int32>] [-SmtpServer] <String> [[-SmtpPort] <Int32>] [[-UseSSL]] [-From] <String> [-InputFile] <String> [<CommonParameters>]
    DESCRIPTION
    Take a XenDesktop Catalog name (or all Catalogs) and gathers PvD usage stats.
    Creates a Summary worksheet with users who have any PvD with > 90% usage.
    Summary worksheet has the user's Active Directory name and email address.
    PARAMETERS
    -XDCatalogName <String>
    XenDesktop Catalog name.  If not entered, process all Catalogs.
    Required?                    false
    Position?                    1
    Default value
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -AdminAddress <String>
    Specifies the address of a XenDesktop controller that the PowerShell script will connect to.  This can be provided as a host name or an IP address.
    Required?                    false
    Position?                    2
    Default value
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -XDVersion <Int32>
    Specifies the XenDesktop version.
    5 is for all versions of XenDesktop 5.
    7 is for all versions of XenDesktop 7.
    Default is XenDesktop 7.
    Required?                    false
    Position?                    3
    Default value                7
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -SmtpServer <String>
    Specifies the optional email server to send emails to users on the Summary worksheet.
    Required?                    true
    Position?                    4
    Default value
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -SmtpPort <Int32>
    Specifies the SMTP port.
    Required?                    false
    Position?                    5
    Default value                25
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -UseSSL [<SwitchParameter>]
    Specifies whether to use SSL for the SmtpServer.
    Default is False.
    Required?                    false
    Position?                    6
    Default value                False
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -From <String>
    Specifies the username for the From email address.
    If SmtpServer is used, this is a required parameter.
    Required?                    true
    Position?                    7
    Default value
    Accept pipeline input?       false
    Accept wildcard characters?  false
    -InputFile <String>
    The file that contains the text for the body of the email.
    If SmtpServer is used, this is a required parameter.
    Text is treated as HTML.
    Required?                    true
    Position?                    8
    Default value
    Accept pipeline input?       false
    Accept wildcard characters?  false
    <CommonParameters>
    This cmdlet supports the common parameters: Verbose, Debug,
    ErrorAction, ErrorVariable, WarningAction, WarningVariable,
    OutBuffer and OutVariable. For more information, see
    about_CommonParameters (http://go.microsoft.com/fwlink/?LinkID=113216).
    INPUTS
    None.  You cannot pipe objects to this script.
    OUTPUTS
    Creates a Microsoft Excel spreadsheet.
    This has only been tested with Microsoft Excel 2010.
    Optional, creates and sends an email for every user on the Summary Worksheet.
    NOTES
    NAME: Get-PvDStatsExcel.ps1
    VERSION: 2.1
    AUTHOR: Carl Webster with help, as usual, from Michael B. Smith
    LASTEDIT: February 1, 2014
    -------------------------- EXAMPLE 1 --------------------------
    PS C:\PSScript >.\Get-PvDStatsExcel.ps1
    Will process all XenDesktop Catalogs.
    AdminAddress is the computer running the script for the AdminAddress.
    Will load Citrix SnapIn for XenDesktop 7.
    -------------------------- EXAMPLE 2 --------------------------
    PS C:\PSScript >.\Get-PvDStatsExcel.ps1 -XDVersion 5
    Will process all XenDesktop Catalogs.
    AdminAddress is the computer running the script for the AdminAddress.
    Will load Citrix SnapIn for XenDesktop 5.
    -------------------------- EXAMPLE 3 --------------------------
    C:\PS>PS C:\PSScript .\Get-PvDStatsExcel.ps1 -XDCatalogName Win7Image1 -AdminAddress DDC01
    Will gather PvD usage stats for the Win7Image1 Catalog
    using a Controller named DDC01 for the AdminAddress.
    Will load Citrix SnapIn for XenDesktop 7.
    -------------------------- EXAMPLE 4 --------------------------
    PS C:\PSScript >.\Get-PvDStatsExcel.ps1 -SmtpServer mail.domain.tld -From XDAdmin@domain.tld -InputFile C:\Scripts\EmailBodyText.txt
    Will process all XenDesktop Catalogs.
    AdminAddress is the computer running the script for the AdminAddress.
    Will load Citrix SnapIn for XenDesktop 7.
    Uses mail.domain.tld as the email server.
    Uses the default SMTP port 25.
    Will not use SSL.
    Uses XDAdmin@domain.tld for the email's Sent From address.
    Reads the contents of C:\Scripts\EmailBodyText.txt and uses the contents as the email body.
    -------------------------- EXAMPLE 5 --------------------------
    PS C:\PSScript >.\Get-PvDStatsExcel.ps1 -SmtpServer smtp.office365.com -SmtpPort 587 -UseSSL -From Webster@CarlWebster.com -InputFile C:\Scripts\EmailBodyText.txt
    Will process all XenDesktop Catalogs.
    AdminAddress is the computer running the script for the AdminAddress.
    Will load Citrix SnapIn for XenDesktop 7.
    Uses smtp.office365.com.
    User SMTP port 587.
    Uses Webster@CarlWebster.com for the email's Sent From address (this must be a valid address on the email system).
    Reads the contents of C:\Scripts\EmailBodyText.txt and uses the contents as the email body.
    -------------------------- EXAMPLE 6 --------------------------
    C:\PS>Sample input file.
    <br />
    <br />
    Your Personal vDisk space has reached over 90% of its capacity.   <br />
    You should resolve this as soon as possible before your Personal <br />
    vDisk fills up and needs to be reset.  When that happens, you <br />
    will need to reinstall your applications.<br />
    <br />
    You should move your 'User Data' from your C and or PvD drive <br />
    and it should be kept on your home drive.  The free space on your <br />
    workstation is to be used for application installs, temp files, <br />
    and other general system and application configurations.<br />
    <br />
    Let us know if you need any help.<br />
    <br />
    Thanks<br />
    <br />
    <br />
    The XenDesktop Help Desk Team at CarlWebster.com<br />
    RELATED LINKS
    PS C:\webster>

    I hope you find the changes useful.

    If you find any issues, please let me know and I will do my best to get them fixed.

    You can always find the most current script by going to https://www.carlwebster.com/where-to-get-copies-of-the-documentation-scripts/

    Thanks

    Webster

    , , , ,





    About Carl Webster

    Webster is a Sr. Solutions Architect for Choice Solutions, LLC and specializes in Citrix, Active Directory and Technical Documentation. Webster has been working with Citrix products for many years starting with Multi-User OS/2 in 1990.

    View all posts by Carl Webster →

    Comments are closed.
