02 Building Webster’s Lab V1 – Configuring a Synology 1817+ NAS for NFS, ESXi 6.7, and XenServer 8.0
In the “Introduction” article, I made the following statements:
For storage, I decided to go with Network File System (NFS) instead of Internet Small Computer Systems Interface (iSCSI). Gregory Thompson was the first to tell me to use NFS instead of iSCSI. If you Google “VMware NFS iSCSI”, you find many articles that explain why NFS is better than iSCSI for VMware environments. For me, NFS is easier to configure on an ESXi host than iSCSI. I also found out my Synology 1817+ storage unit supported NFS.
For home labs, there are two vendors whose names I see referenced frequently: QNAP and Synology.
Webster’s Lab has two Synology devices: a DS1817 and a DS1817+ (both are already deprecated devices). The DS1817 uses SSDs and used for backups and ISO storage. The DS1817+ uses SSDs and used for temporary VMs. I store permanent VMs on local SSD storage on the Citrix XenServer hosts.
Synology uses DiskStation Manager (DSM) to manage their storage devices. DSM is a web-based operating system designed to help manage all aspects of the storage device.
This article shows you how I configured my Synology 1817+ to use NFS and install the VMware vSphere Storage APIs Array Integration (VAAI) plugin.
In the Introductory article, I mentioned I had a major issue with VMware vSphere 6.x and NFS 4.1. I did, but XenServer had no issues with NFS 4.1. I decided for the sake of my hair and sanity to use only NFS 3 for both vSphere and XenServer.
Note: Chapters 2 and 3 of the Synology NAS User’s Guide cover the installation and initial configuration of the Synology NAS with DSM.

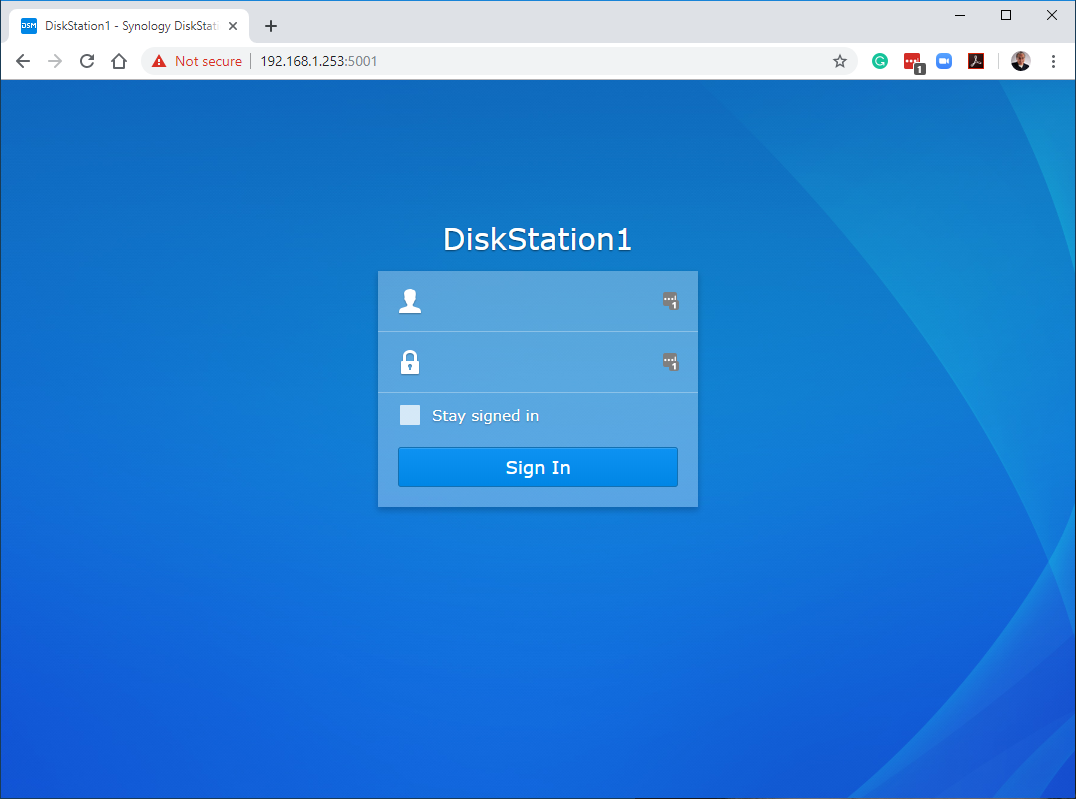

First, log in to the NAS by opening an internet browser, browsing to the IP address of the Synology device, enter the username and password for the device, then click Sign In. For me, that is https://192.168.1.253:5001, as shown in Figure 1.

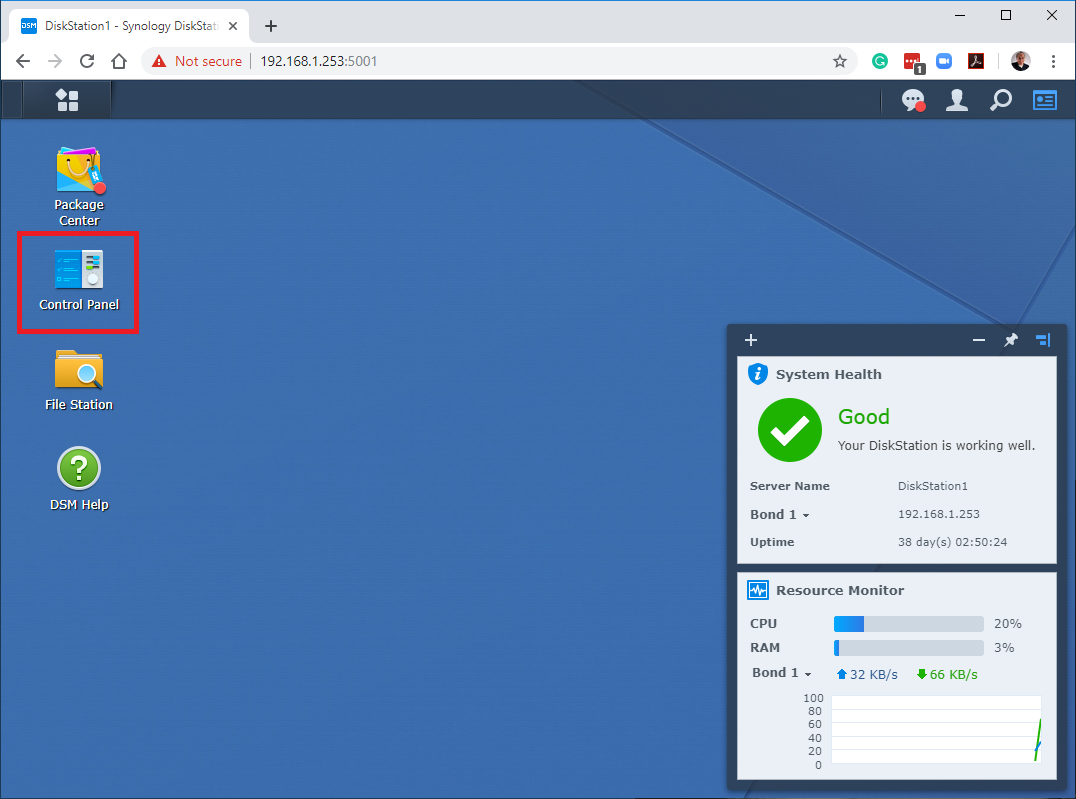

Next, on the main page, click the Control Panel, as shown in Figure 2.

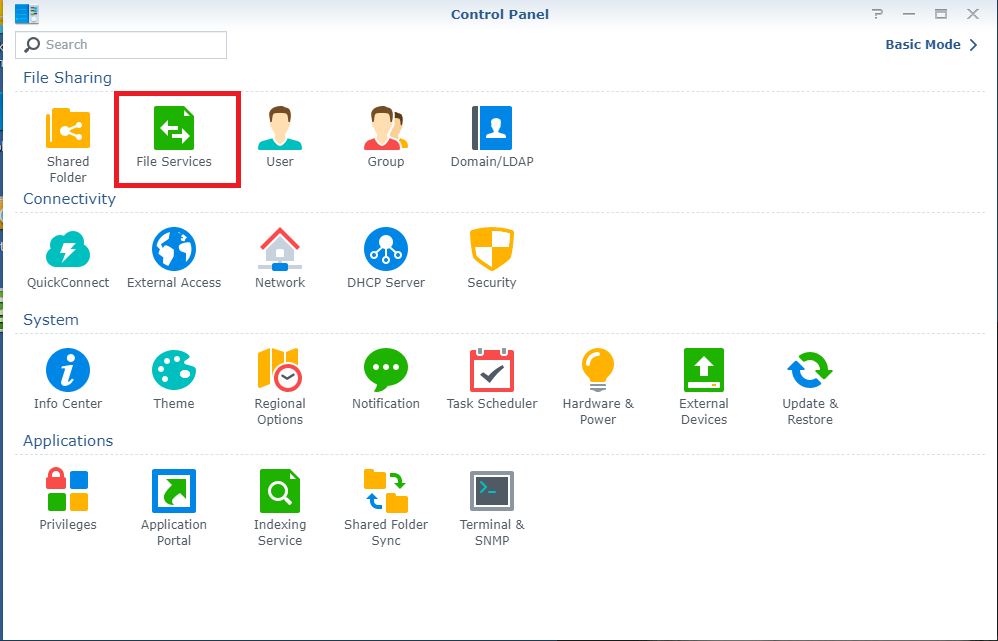

Click on File Services, as shown in Figure 3.

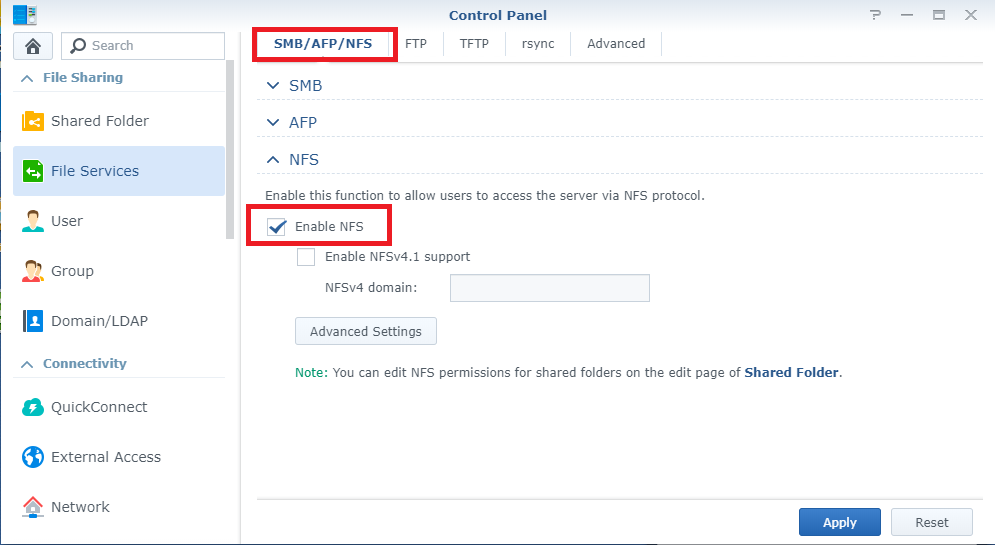

On the SMB/AFP/NFS tab, select Enable NFS as shown in Figure 4.

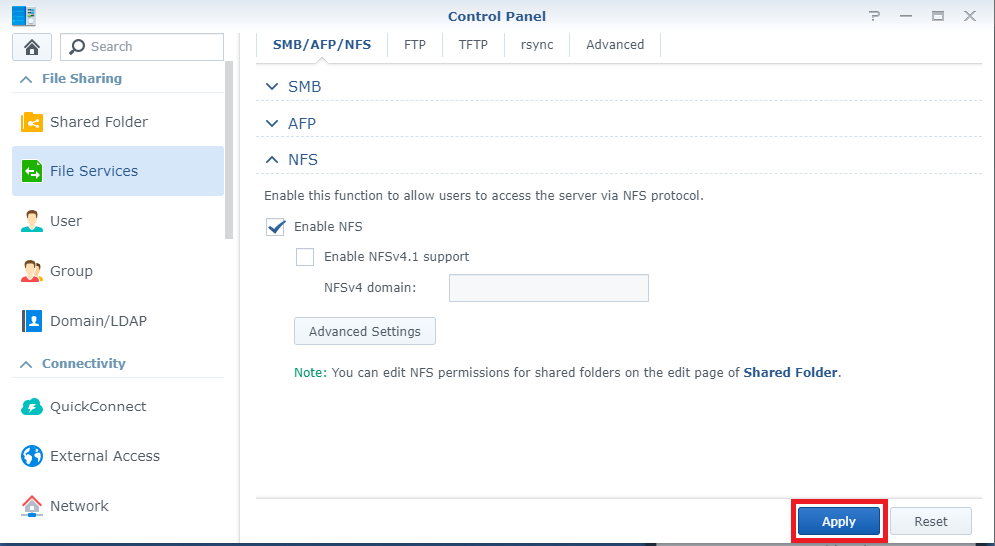

Click Apply to save the changes, as shown in Figure 5.

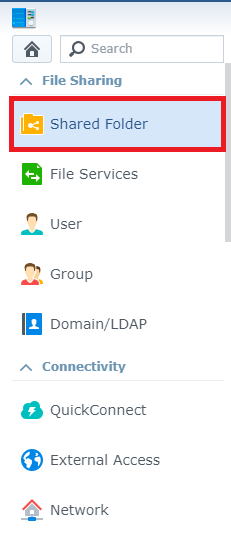

Click Shared Folder, as shown in Figure 6.

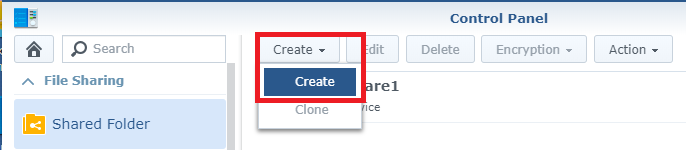

Click Create, as shown in Figure 7.

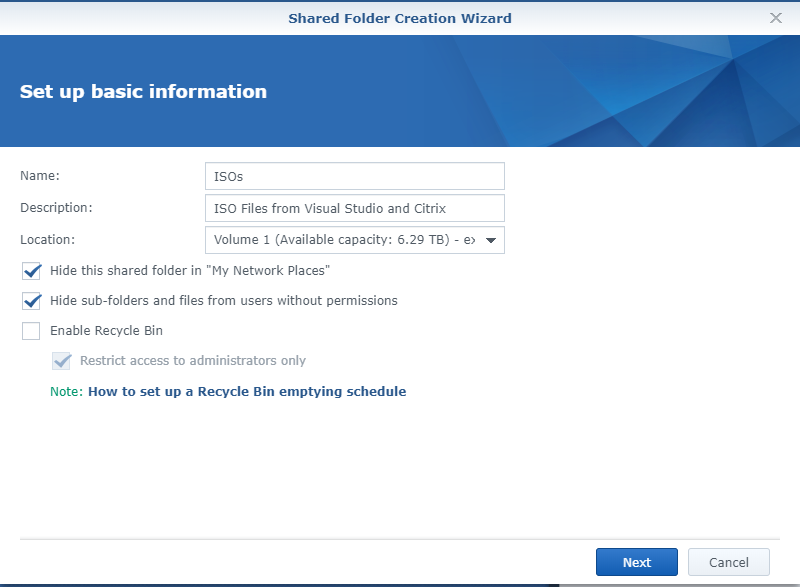

Do the following steps, as shown in Figure 8:
Enter a Name and Description.
If you have more than one Volume configured, select the appropriate Volume for the Location.
Select both Hide this shared folder in “My Network Places” and Hide sub-folders and files from users without permissions.
Deselect Enable Recycle Bin

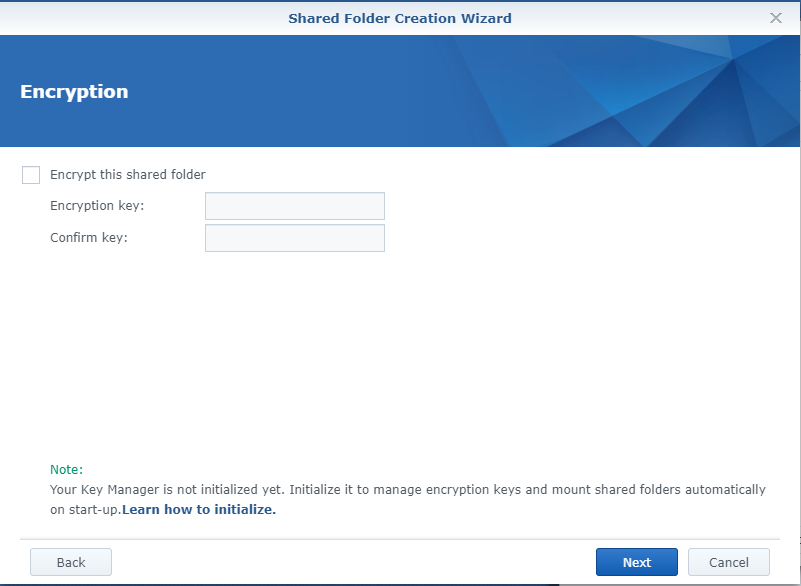

Verify nothing is selected and click Next as shown in Figure 9.
Verify nothing is selected and click Next as shown in Figure 10.
Verify all the information is correct, as seen in Figure 11. If it is, click Apply. If the information is not correct, click Back, correct the information, and then continue.

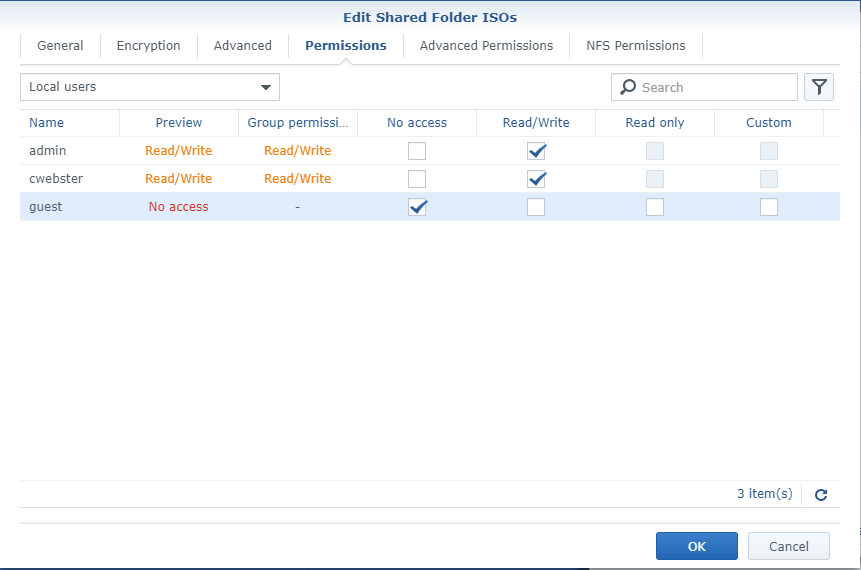

On the Permissions tab, select Read/Write for the admin accounts and No Access for the guest account, as shown in Figure 12. Do not click OK yet.

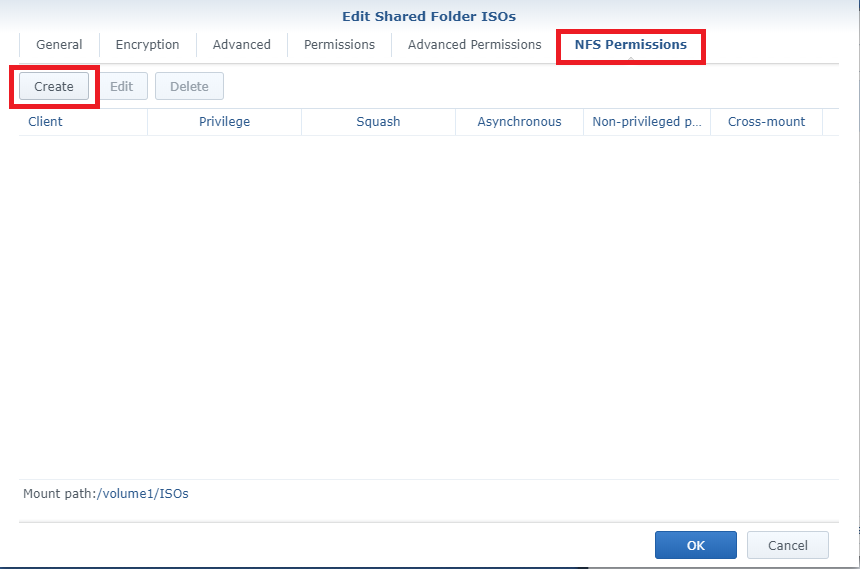

Click the NFS Permissions tab and then click Create, as shown in Figure 13.

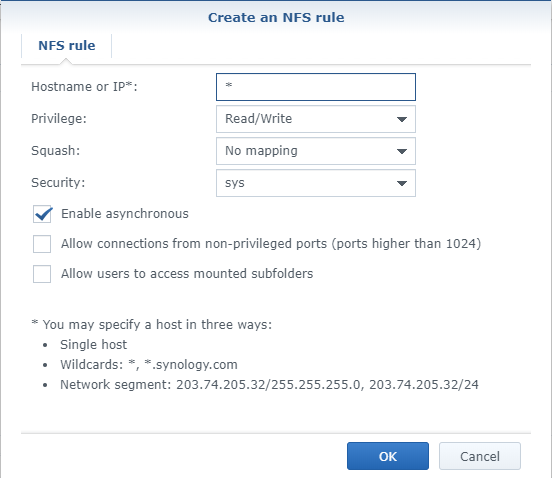

Enter the Hostname or IP address of the ESXi host and click OK, as shown in Figure 14. Because I have six ESXi hosts and later add them to VMware vCenter, I entered an * for the IP address to allow all IP addresses in Webster’s Lab access.
Note: Synology Diskstation Manager grants NFS permissions on a per-host basis instead of a per-user basis because virtualization hosts access the NFS shares, not users.

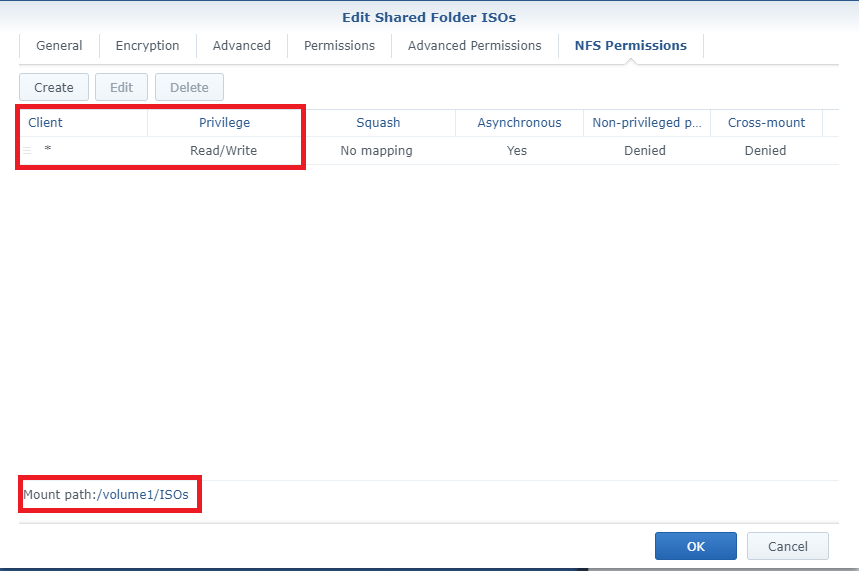

Note: Save the Mount path information shown in Figure 15. You need it when creating datastores on the ESXi host and when setting up the backup for the vCenter Server Appliance (VCSA). If you need the Mount path information later, click the Edit tab displayed in Figure 15, and go to the NFS Permissions tab as shown previously in Figure 13.

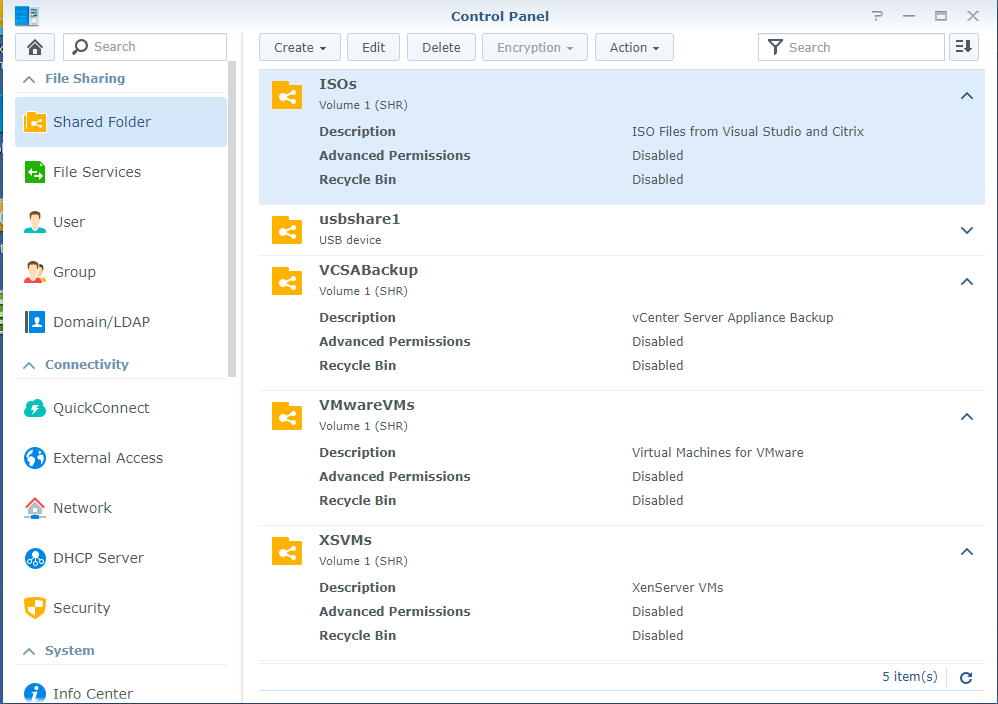

Repeats the steps for Figures 7 through 15 for additional NFS Shared Folders needed, as shown in Figure 16.
For example, for Webster’s Lab, I created NFS Shared folders for not only ISOs but VMware VMs, XenServer VMs, and the VCSA backup as you can see in Figure 16. Each NFS share has a unique mount path. I have four NFS shares, so I have four NFS mount paths.
Now, you need to install the VAAI Plug-in for NFS. Go to https://global.download.synology.com/download/Tools/NFSVAAIPlugin/1.2-1008/VMware_ESXi/synology-nfs-vaai-plugin-1.2-1008.vib and download the VIB NFS Plug-in for VMware VAAI for your Synology NAS model.
Note: If the download link has changed, go to https://www.synology.com and search for “nfs vaai plugin”. A user account on synology.com is not required to download the VIB file.
Note: VIB stands for vSphere Installation Bundle. At a conceptual level, a VIB is somewhat similar to a ZIP archive, in that it is a collection of files packaged into a single archive to facilitate distribution.
Using your favorite secure upload utility, I used WinSCP, upload the VAAI plug-in to the /tmp directory on the ESXi host.

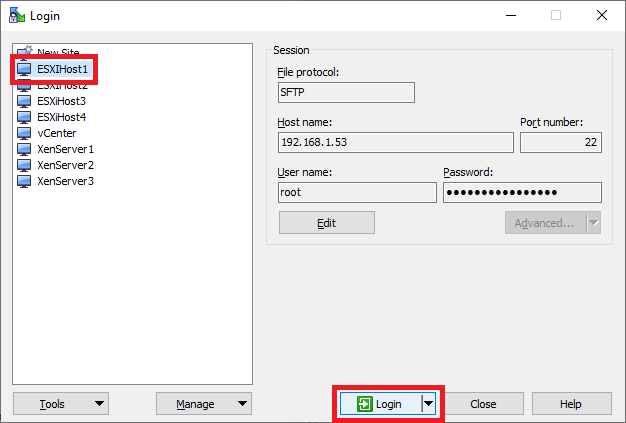

First, connect to the ESXi host, as shown in Figure 17.

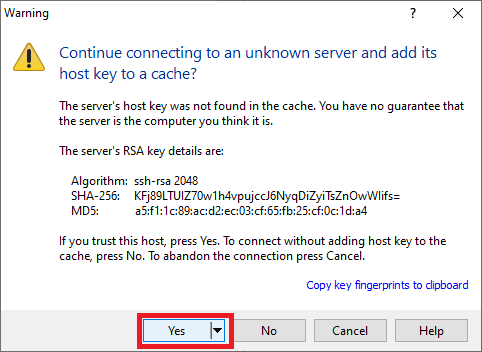

If this is the first time connecting to the host, a key-exchange is required. If you want to add the server’s host key to the secure upload utility’s cache, click Yes, as shown in Figure 15.
You can connect without added the server’s host key to the secure upload utility’s cache. Click No if you do not wish to save the server’s host key in the cache.
In WinSCP, there are three ways to upload the VIB file to the ESXi host.
- Drag and Drop the VIB file from the left pane to the right pane, as shown in Figure 18.

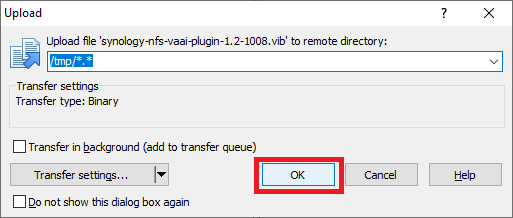

- Select the VIB file in the left pane, press F5, and click OK, as shown in Figure 16.

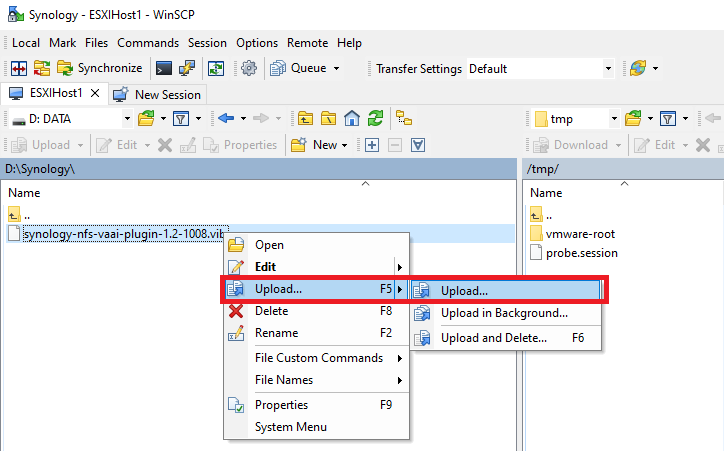

- Select the VIB file in the left pane, right-click, select Upload, as shown in Figure 17, and click OK, as shown in Figure 16.

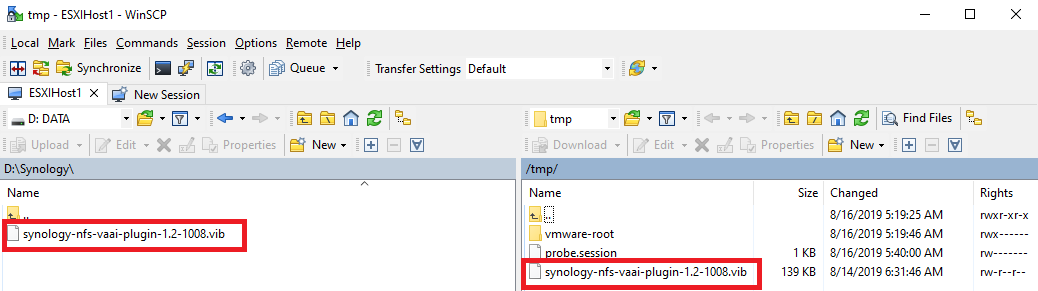

Using your preferred upload method, copy the VIB file to the /tmp directory on the ESXi host, as shown in Figure 21.
Exit your favorite secure upload utility.
Note: The following two steps (the final two steps) are part of the ESXi host configuration. I just wanted to sneak them in here, so I could get all the Synology NFS information in one article.

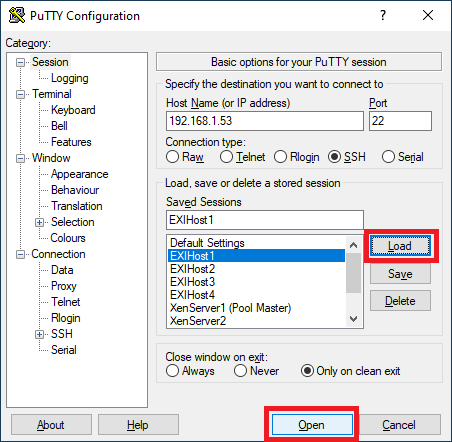

Using your favorite SSH client, I used PuTTY, connect to the ESXi host, as shown in Figure 22.
Note: I only tested PuTTY. I did not try using the SSH client from Windows 10 1809.

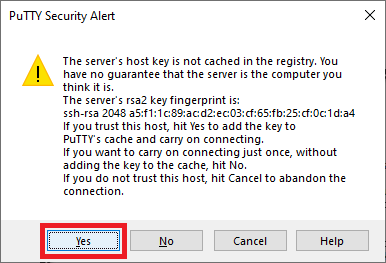

If this is the first time connecting to the host, a key-exchange is required. If you want to add the host’s key to the SSH client’s cache, click Yes, as shown in Figure 23.
You can connect without adding the host’s key to the SSH client’s cache. Click No if you do not wish to save the host’s key in the cache.

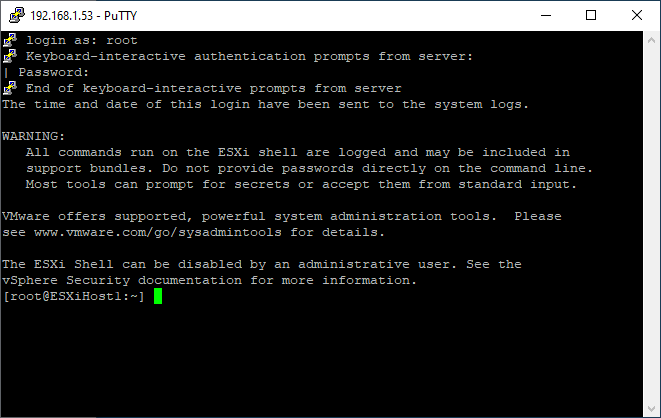

Log in to the host using your configured credentials. If you just installed ESXi, then log in as root and the password used during the ESXi install, as shown in Figure 24.

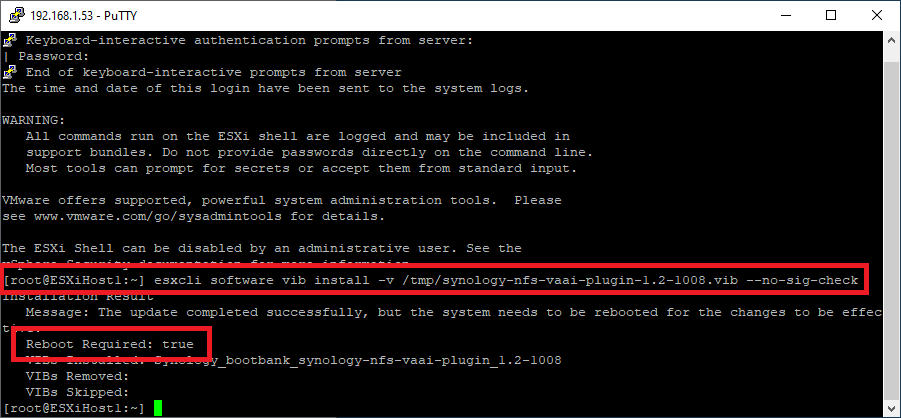

Run the following command, as shown in Figure 25.
esxcli software vib install -v /tmp/synology-nfs-vaai-plugin-1.2-1008.vib –no-sig-check
Reboot the ESXi host by typing reboot and pressing Enter, as shown in Figure 26.

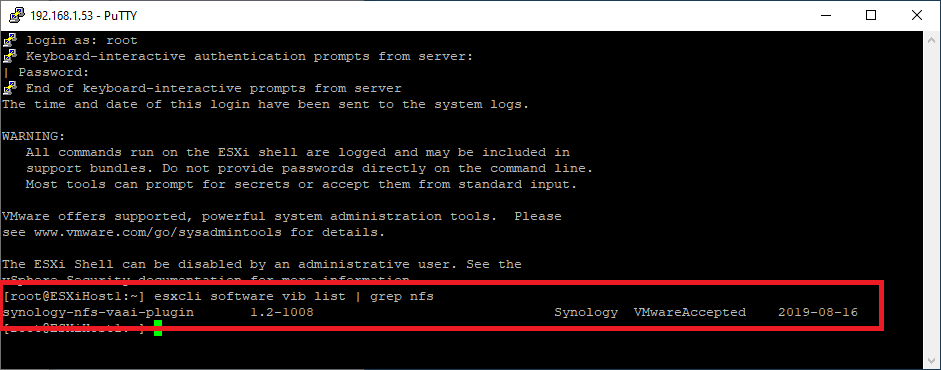

Once the host is up, use your SSH client to verify the VAAI plug-in installation. Run the following command, as shown in Figure 27.
esxcli software vib list | grep nfs
Up next: Install VMware ESXi 6.7.
4 Responses to “02 Building Webster’s Lab V1 – Configuring a Synology 1817+ NAS for NFS, ESXi 6.7, and XenServer 8.0”
Leave a Reply
March 18, 2021 at 3:57 pm
Hello thanks for this write up.
How can you delineate the metrics improvement or “see visually” what is different (in terms of speed) with this VIB installed?
We have our NFS shares pretty much exactly like your article and we just installed the NFS Plug-in but we haven’t seen much improvement?
Are we limited to the horsepower of our Synology?
I am guessing the “magic” is all in the API and we are assuming it is working?
Unlike with the command for the iSCSI stuff (esxcli storage core device vaai status get) how does one see what Primitives are supported in an NFS setup?
Thanks for any input.
April 5, 2021 at 5:55 am
In my lab since everything is SSD or NVMe and all 10Gb, I don’t know what improvement there was as everything was SSD, NVMe, and 10Gb from the beginning. I have asked some contacts at Synology to see if they can help answer your questions.
What model of Synology, how much RAM, how many and what types of drives, and what networking is in your NAS?
I recommend you open a support ticket (link) and let the Synology techs help you troubleshoot your issue.
August 4, 2020 at 3:54 am
Hey Carl, as usually great post!
I also have an ESXi connected at Synology NAS, and interesting info is that iSCSI LUN is actually thin provisioned, however looking at NFS 4.1 Shared Folder used by ESXi, VMDK file is using whole space. Win10 Template using 15GB with iSCSI but using full disk size (32GB) with NFS.
Is this happening with you too?
November 10, 2020 at 5:04 am
No, this doesn’t happen for me.
Sorry for the delayed response. Your comment got caught by the spam filter.
